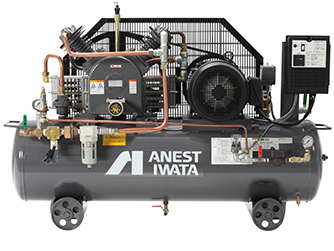

This is a booster compressor that can boost the pressure of low pressure (0.5~1.0MPa) compressed air/nitrogen gas to 3.0MPa. A tank mount type equipped with a large capacity air tank. A secondary side filter is included.

Purpose

This is a booster compressor that can boost the pressure of low pressure (0.5~1.0MPa) compressed air/nitrogen gas to 3.0MPa.

Features

・A 60ℓ air tank on the primary side and a triple filter on the secondary side are included as standard.
・Easy to inspect as the mechanical part is exposed.
・Equipped with wheels for excellent portability.
-Equipped with a large capacity air tank, allowing for a stable supply of air.
・The compression mechanism is exposed, making it more resistant to heat than packaged types.
- Lubricating oil is used in the compressor body, resulting in efficient compression and high durability.

Specification



format[Electric motor] Output [kW]Control pressure lower limit [MPa]Control pressure upper limit [MPa]Discharge air volume 50Hz/60Hz [L/min]
TLBS55C30-S2 5.5 2.65 3.00 1550
TLBS75C30-S2 7.5 2.65 3.00 1950

・The amount of air discharged is the average value of the amount of air discharged at maximum pressure converted to the suction state (atmospheric pressure).
Please contact us for guaranteed values.
-Noise values ​​are measured in an anechoic chamber under full load, so noise values ​​may vary depending on the customer's usage environment.
Note) Specifications are subject to change without notice due to product improvement.
