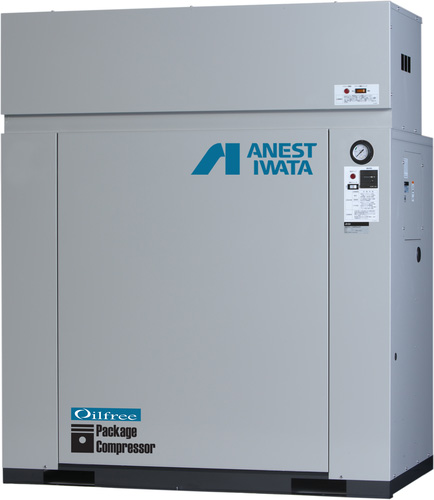

It is a package type and has excellent quietness. There are two types available: 0.85MPa and 1.4MPa.

Specification

format[Electric motor] Output [kW]Control pressure lower limit [MPa]Control pressure upper limit [MPa]Discharge air volume 50Hz/60Hz [L/min][Electric motor] Power supply
CFP07C-8.5C 0.75 0.70 0.85 80 AC200V
CFP07CF-8.5D 0.75 0.70 0.85 70 AC200V
CFP07CF-8.5 0.75 0.7 0.85 80 AC200V
CFP15CF-8.5D 1.5 0.7 0.85 160 AC200V
CFP15CF-8.5 1.5 0.7 0.85 160 AC200V
CFP22CF-8.5D 2.2 0.7 0.85 260 AC200V
CFP22CF-8.5 2.2 0.7 0.85 260 AC200V
CFP37CF-8.5D 3.7 0.7 0.85 375 AC200V
CFP37CF-8.5 3.7 0.7 0.85 375 AC200V
CFP55CF-14D 5.5 1.15 1.40 540 AC200V
CFP55CF-8.5D 5.5 0.7 0.85 565 AC200V
CFP55CF-8.5 5.5 0.7 0.85 565 AC200V
CFP75CF-14D 7.5 1.15 1.40 725 AC200V
CFP75CF-8.5D 7.5 0.7 0.85 825 AC200V
CFP75CF-8.5 7.5 0.7 0.85 825 AC200V
CFP110CF-14D 11 1.15 1.40 1055 AC200V
CFP110CF-8.5D 11 0.7 0.85 1140 AC200V
CFP110CF-8.5 11 0.7 0.85 1140 AC200V
