Features

- Large amount of paint ejects and can handle high viscosity paint.
- Adopts a drop-in nozzle, making it easy to disassemble and clean.
- The nozzle diameter can be changed by replacing the nozzle, needle, and nozzle cap. (φ0.3mm⇔φ0.5mm)
- Uses needle packing with excellent solvent resistance.
・Uses a button oscillator chuck that is easy to disassemble and clean.

specification

formatPaint supply methodSpraying methodNozzle diameter [mm]Container capacity [mL]Standard spray pressure [MPa]Operating ambient temperature [℃]Working fluid temperature [℃]Noise value [dB]accessoriesremarks

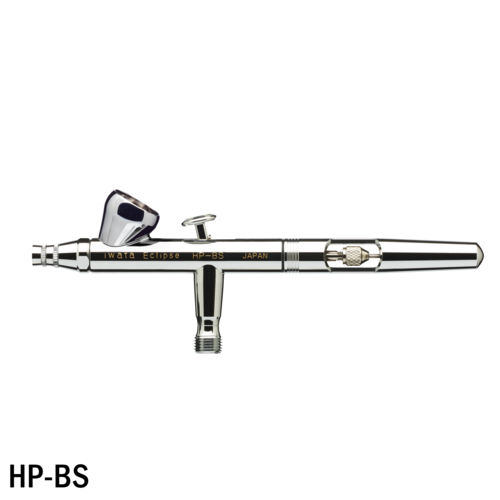

HP-BS gravity type Full blow 0.3 1.5 0.1～0.29 5～40 -- -- -- double action

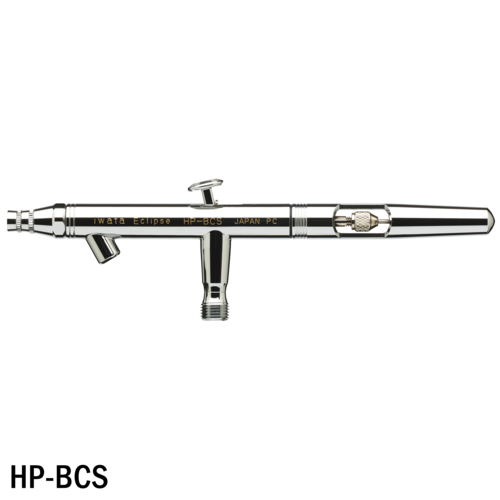

HP-BCS Suction type Full blow 0.5 30.0 0.1～0.29 5～40 -- -- bottle cup double action
