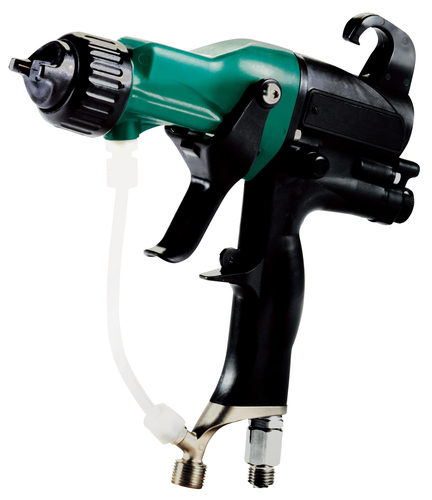

The EA-MS40 series is an air-powered electrostatic gun that does not require an electrostatic controller, so it
is easy to switch from your existing hand air spray gun, and the initial cost is lower than other models.


 Features

●Increased spray efficiency
The small and light body is easy to handle and allows for stable spraying all day long. Air-generated built-in power supply
eliminates the need for heavy cables, reducing worker fatigue.
The grip part is ergonomically designed, so even if you hold it for a long time, it
will put less strain on your hands and reduce work fatigue.

●Profit improvement and cost reduction
Although it is a small electrostatic spray gun, it has high coating efficiency and does not spray unnecessary paint, leading to cost reduction.
Even parts with complex shapes can be thoroughly coated in a short amount of time, reducing work time and
contributing to energy savings.

●Can be replaced with your existing air spray gun
Since this is an air-generated electrostatic gun that does not require an electrostatic controller, you
can obtain an electrostatic effect by replacing this product with your existing pressure-feeding air spray gun.


specification

formatPaint/liquid supply methodNozzle diameter [mm]Pattern opening/spraying distance [mm]High voltage generation methodOutput voltage [kV]Recommended paint viscosity [sec/NK-2]Accessories Air hose [m]
EA-MS40-15 Pressure feeding type 1.5 450 Internal air power generation system -40kV 20 7.6/15
