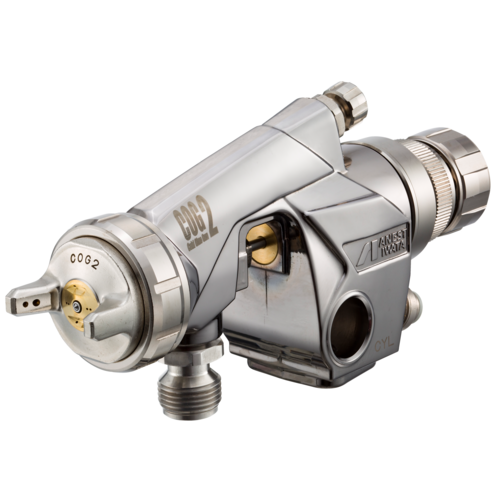

What is an adhesive spray gun?
This is a special spray gun for adhesion processes to automobile interior parts, woodwork, rubber products, etc. The viscosity range that can be sprayed is within 10,000 cps. Even with highly viscous adhesives, it achieves highly atomized particles and a wide pattern, allowing stable application even with large spray volumes.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | Air usage [L/min] | (1) Pattern opening/spraying distance [mm] | Port size Liquid | Connection port size Atomizing air | Connection port size Working air | Mass [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| COG2-A18 | Pressure feeding type | -- | 0.29 | 250 | 440 | -- | -- | -- | -- | 420 |
