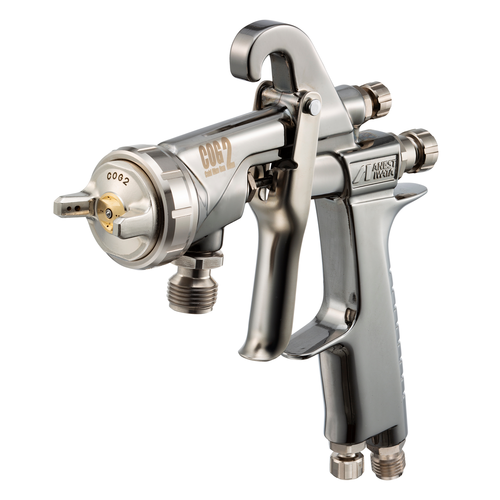

What is an adhesive spray gun?
This is a special spray gun for adhesion processes to automobile interior parts, woodwork, rubber products, etc. The viscosity range that can be sprayed is within 10,000 cps. Even with highly viscous adhesives, it achieves highly atomized particles and a wide pattern, allowing stable application even with large spray volumes.
Features

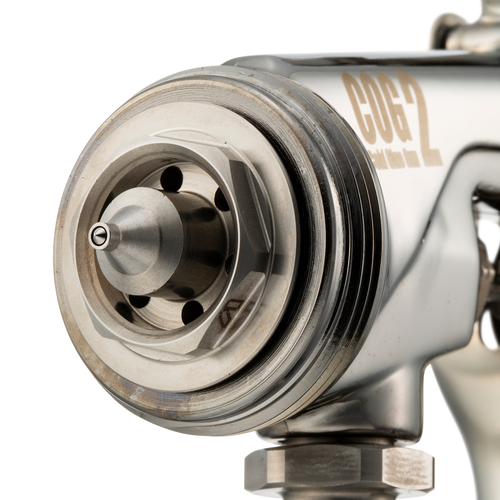

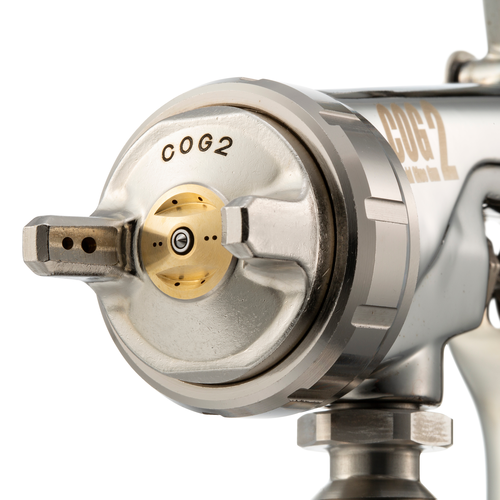

Equipped with a special cap that can finely atomize the adhesive. In addition, the pattern width is wide even when the distance between the workpiece and the gun is close, so coating efficiency is high and uneven coating and stringiness are reduced. Furthermore, dirt adhesion to the air cap and nozzle tip is also reduced. Mechanically improves the cause of poor adhesion, improving quality and reducing costs.
Main unit features
・Ergonomic design with emphasis on functionality
・Simple maintenance
・Pattern adjustment device that responds linearly
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Connection port size Air | Connection diameter Paint | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COG2-H18 | Pressure feeding type | 1.8 | 0.29 | 250 | 390/200 | 440 | General purpose | straight nozzle | COG2 | -- | 375 | -- | -- | Round to flat blowing | -- | 5.5～7.5 | G1/4B male | G3/8B male | -- | 80 | 5～40 | 5～43 | -- | 0.70 | -- | -- |
| COG2-H18S | Suction type | 1.8 | 0.29 | 110 | 270/200 | 410 | General purpose | straight nozzle | COG2S | -- | 375 | -- | -- | Round to flat blowing | -- | 5.5～7.5 | G1/4B male | G3/8B male | -- | 80 | 5～40 | 5～43 | 0.70 | -- | -- | -- |
| COG2-H12 | Pressure feeding type | 1.2 | 0.29 | 150 | 265/200 | 440 | General purpose | straight nozzle | COG2 | -- | 375 | -- | -- | Round to flat blowing | -- | 5.5～7.5 | G1/4B male | G3/8B male | -- | 80 | 5～40 | 5～43 | 0.70 | -- | -- | -- |
