Features

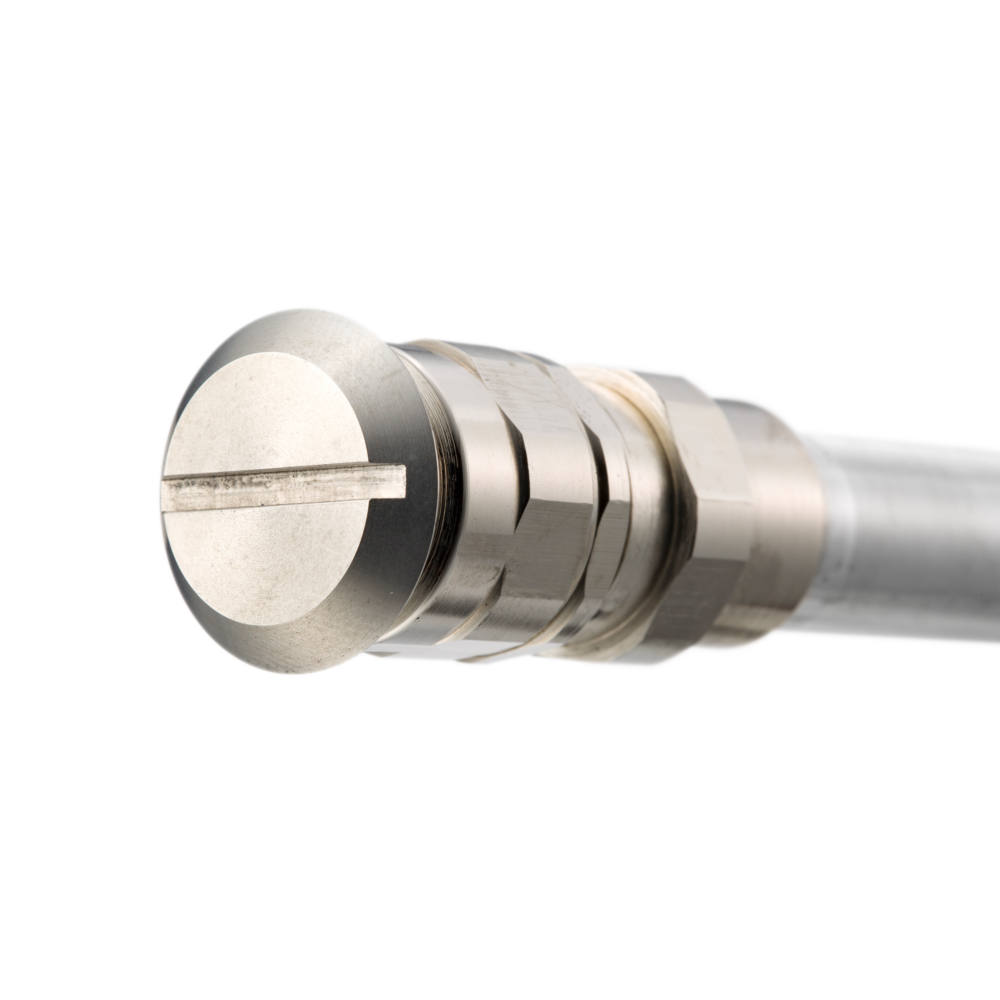

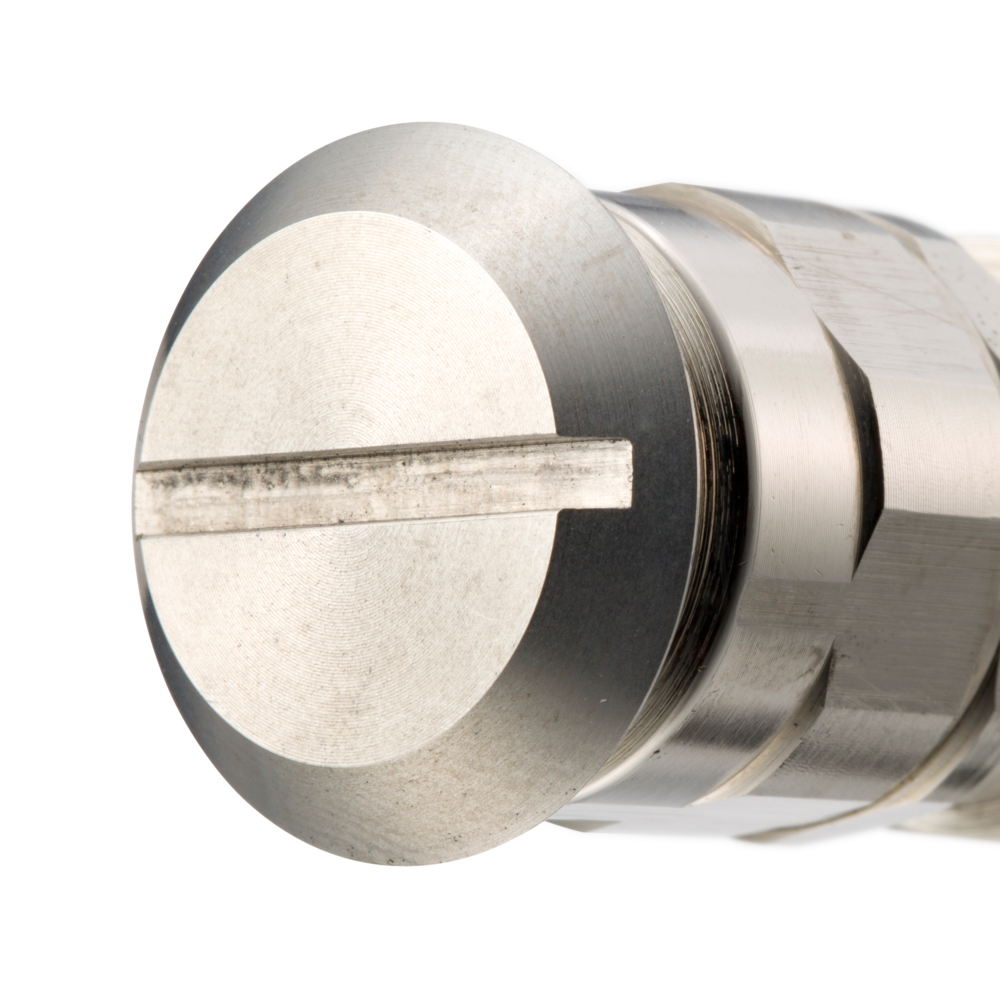

The outer diameter of the tip of the cap and nozzle is Φ20mm.

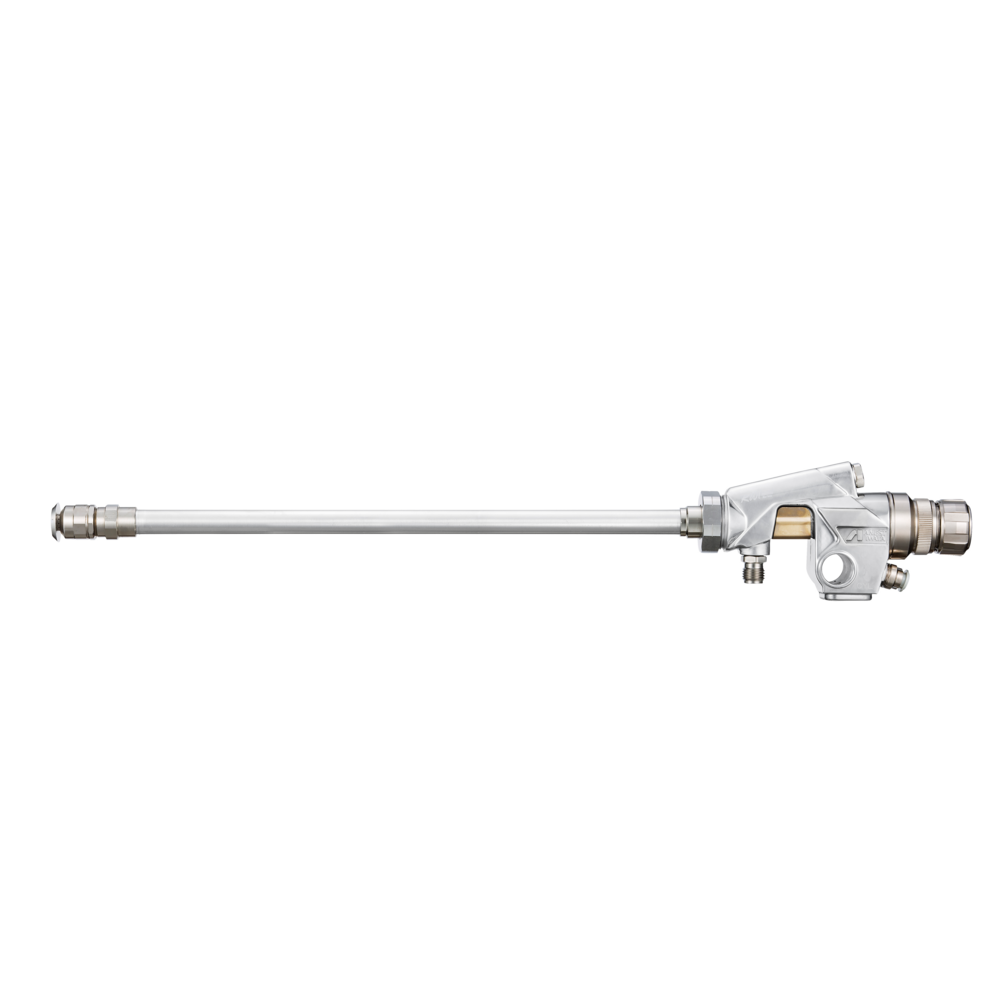

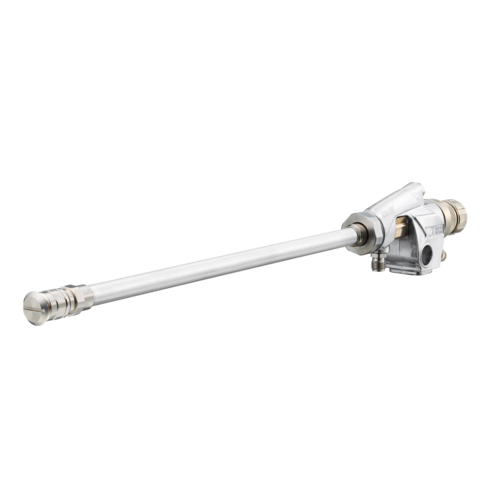

There are two standard 360° spray angles, 150° and 180°, and lengths up to 500mm.
Ideal for applications where the object cannot be rotated when coating the inner surface of a cylindrical surface.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | Length [mm] | Deflection plate angle [°] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RW1-A-20150-1 | Pressure feeding type | 0.7×12 pieces | 0.29 | -- | -- | 90 | General purpose | corn | -- | 20 | -- | -- | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | 180 |
| RW1-A-20300-1 | Pressure feeding type | 0.7×12 pieces | 0.29 | -- | -- | 90 | General purpose | corn | -- | 20 | -- | -- | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 300 | 180 |
| RW1-A-20300-2 | Pressure feeding type | 0.7×12 pieces | 0.29 | -- | -- | 90 | General purpose | corn | -- | 20 | -- | -- | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | 150 |
| RW1-A-20500-1 | Pressure feeding type | 0.7×12 pieces | 0.29 | -- | -- | 90 | General purpose | corn | -- | 20 | -- | -- | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 500 | 180 |
| RW1-A-20500-2 | Pressure feeding type | 0.7×12 pieces | 0.29 | -- | -- | 90 | General purpose | corn | -- | 20 | -- | -- | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 500 | 150 |
