Features

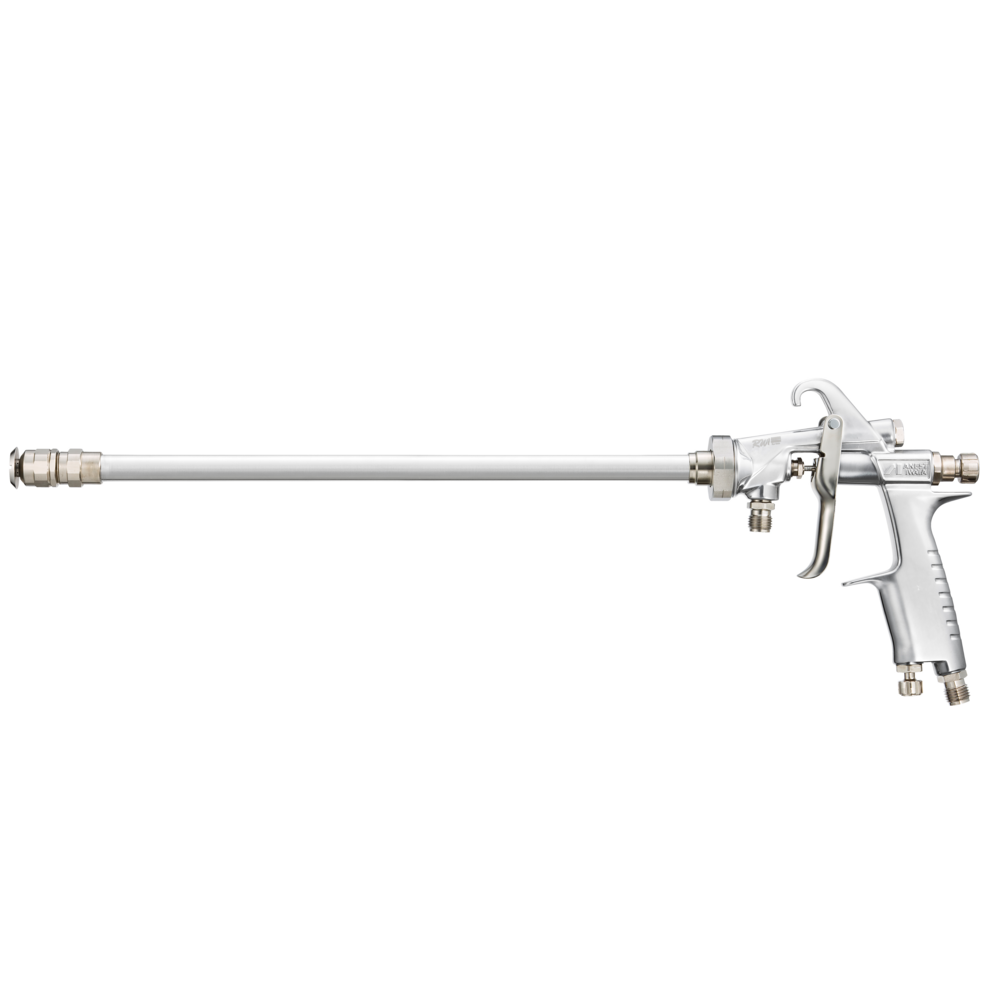

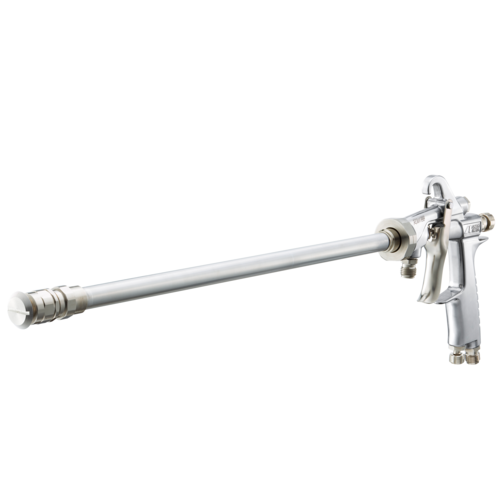

The outer diameter of the tip of the cap and nozzle is Φ20mm.
There are two standard 360° spray angles, 150° and 180°, and lengths up to 500mm.
Ideal for applications where the object cannot be rotated when coating the inner surface of a cylindrical surface.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
Main unit features
・Ergonomic design with emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | old model | Paint/liquid supply method | spray gun type | Nozzle diameter [mm] | nozzle shape | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure [MPa] | Blow air pressure [MPa] | Air usage [L/min] | Air usage [L/min] | (1) Pattern opening/spraying distance [mm] | air cap format | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Mass [g] | Connection port size Air | Connection diameter Paint | Purpose | paint/liquid | solvent/aqueous | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RW1-H-20150-2 | LW-10B-ST1-C1 | Pressure feeding type | General purpose | 0.7×12 pieces | corn | 20 | 0.29 | 0.29 | 90 | 90 | -- | -- | -- | round | brass, stainless steel | 0.4~0.75 | 465 | G1/4B male | G1/4 female | -- | paint | solvent | 78.7 | 5～40 | 5～43 | 0.68 |
| RW1-H-20300-1 | LW-10B-ST1-C1 | Pressure feeding type | General purpose | 0.7×12 pieces | corn | 20 | 0.29 | 0.29 | 90 | 90 | -- | -- | -- | round | brass, stainless steel | 0.4~0.75 | 515 | G1/4B male | G1/4 female | -- | paint | solvent | 78.7 | 5～40 | 5～43 | 0.68 |
| RW1-H-20300-2 | LW-10B-ST1-C1 | Pressure feeding type | General purpose | 0.7×12 pieces | corn | 20 | 0.29 | 0.29 | 90 | 90 | -- | -- | -- | round | brass, stainless steel | 0.4~0.75 | 515 | G1/4B male | G1/4 female | -- | paint | solvent | 78.7 | 5～40 | 5～43 | 0.68 |
| RW1-H-20500-1 | LW-10B-ST1-C1 | Pressure feeding type | General purpose | 0.7×12 pieces | corn | 20 | 0.29 | 0.29 | 90 | 90 | -- | -- | -- | round | brass, stainless steel | 0.4~0.75 | 585 | G1/4B male | G1/4 female | -- | paint | solvent | 78.7 | 5～40 | 5～43 | 0.68 |
| RW1-H-20500-2 | LW-10B-ST1-C1 | Pressure feeding type | General purpose | 0.7×12 pieces | corn | 20 | 0.29 | 0.29 | 90 | 90 | -- | -- | -- | round | brass, stainless steel | 0.4~0.75 | 465 | G1/4B male | G1/4 female | -- | paint | solvent | 78.7 | 5～40 | 5～43 | 0.68 |
| RW1-H-20150-1 | LW-10B-ST1-C1 | Pressure feeding type | General purpose | 0.7×12 pieces | corn | 20 | 0.29 | 0.29 | 90 | 90 | -- | -- | -- | round | brass, stainless steel | 0.4~0.75 | 465 | G1/4B male | G1/4 female | -- | paint | solvent | 78.7 | 5～40 | 5～43 | 0.68 |
