Features
There are three standard neck angles: 0°, 45°, and 90°, and lengths up to 500mm.

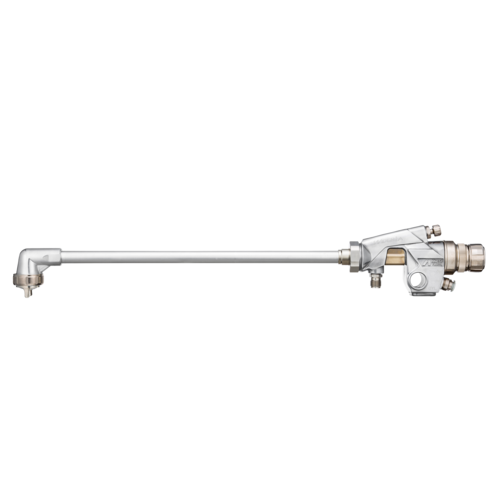

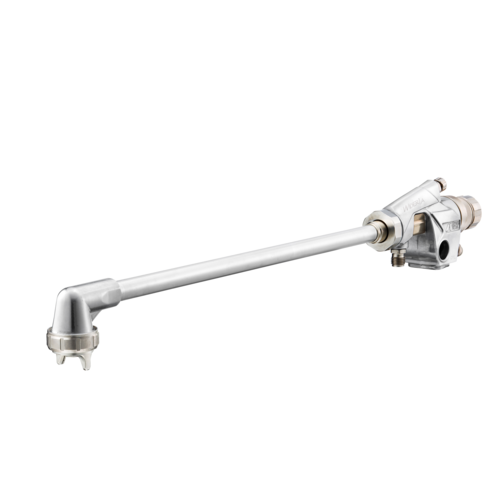

This is a spray gun used for painting deep areas and the inside surfaces of pipes.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LW1A-10E1-0015 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 585 | -- | 0.29 | General-purpose fine particles | For flat blowing only | brass, stainless steel | Aluminum | -- | Φ8 | -- | Φ6 | G1/4 | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-0030 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 635 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-0050 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 705 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4 | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-4515 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 585 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-4530 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 635 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-4550 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 705 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-9015 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 585 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-9030 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 635 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
| LW1A-10E1-9050 | Pressure feeding type | 1.0 | 0.29 | 150 | 175/200 | 90 | General purpose | straight nozzle | 705 | 12 | -- | General-purpose fine particles | For flat blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | 83 | 5～40 | 5～43 | 0.70 | -- | -- |
