What is a mold release agent spray gun?
This is a spray gun and equipment dedicated to mold release agents for manufacturing rubber molding, resin molding, die casting, casting products, etc.
We have a wide lineup of wide pattern hand spray guns and automatic spray guns.
By using a special spray gun for mold release agent, the molded product can be easily removed from the mold through proper atomization,
helping to prevent damage to both the molded product and the mold.
Features

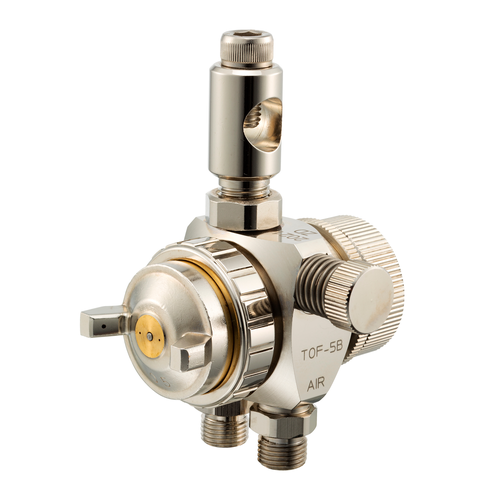

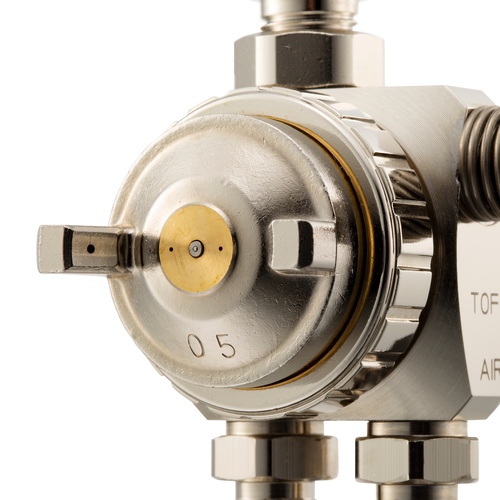

This is a simple type automatic gun that combines blowing air and piston operating air, and can spray with just one three-way solenoid valve.
However, please note that the blowing air pressure must be at least 0.35MPa since the piston must be operated.
Therefore, delicate painting or spraying at low pressure is not possible.
Adjust the pattern width by turning the knob manually.
There is also a type exclusively for round blowing.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOF-5B-05 | Suction type, gravity type, pressure feeding type | 0.5 | 0.30 | 60 | 200/300 | 60 | General purpose | straight nozzle | 05 | 320 | -- | General-purpose fine particles | Round to flat blowing | brass, stainless steel | Brass | 0.75~1.5 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5B-10 | Suction type, gravity type, pressure feeding type | 1.0 | 0.30 | 250 | 250/300 | 80 | General purpose | straight nozzle | Ten | 320 | -- | General-purpose fine particles | Round to flat blowing | brass, stainless steel | Brass | 0.75~1.5 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5B-13 | Suction type, gravity type, pressure feeding type | 1.3 | 0.30 | 360 | 350/300 | 100 | General purpose | straight nozzle | 13 | 320 | -- | General-purpose fine particles | Round to flat blowing | brass, stainless steel | Brass | 1.5~2.2 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5B-20 | Suction type, gravity type, pressure feeding type | 2.0 | 0.30 | 600 | 400/300 | 140 | General purpose | straight nozzle | 20 | 320 | -- | General-purpose fine particles | Round to flat blowing | brass, stainless steel | Brass | 1.5~2.2 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5RB-05 | Suction type, gravity type, pressure feeding type | 0.5 | 0.30 | 60 | 50/300 | 40 | General purpose | straight nozzle | 05 | 300 | -- | General-purpose fine particles | For round blowing only | brass, stainless steel | Brass | 0.75~1.5 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5RB-10 | Suction type, gravity type, pressure feeding type | 1.0 | 0.30 | 250 | 70/300 | 50 | General purpose | straight nozzle | Ten | 300 | -- | General-purpose fine particles | For round blowing only | brass, stainless steel | Brass | 0.75~1.5 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5RB-13 | Suction type, gravity type, pressure feeding type | 1.3 | 0.30 | 360 | 80/300 | 55 | General purpose | straight nozzle | 13 | 300 | -- | General-purpose fine particles | For round blowing only | brass, stainless steel | Brass | 1.5~2.2 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
| TOF-5RB-20 | Suction type, gravity type, pressure feeding type | 2.0 | 0.30 | 600 | 90/300 | 85 | General purpose | straight nozzle | 20 | 300 | -- | General-purpose fine particles | For round blowing only | brass, stainless steel | Brass | 1.5~2.2 | G1/8 male | -- | G1/8 male | G1/8 male | For applying mold release agent | 69.4 | 5～40 | 5～43 | 0.68 | operating instructions | -- |
