Features

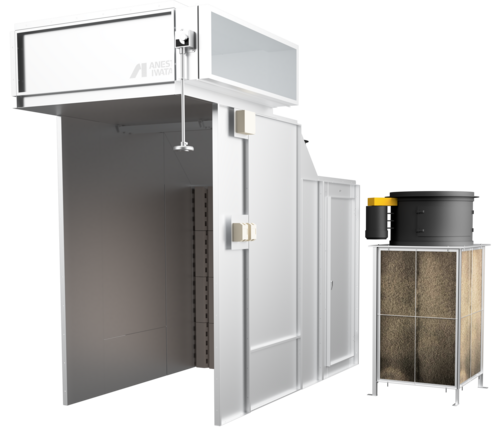

We ensured that the air supply chamber filter area was sufficient and that the air supply and exhaust discharge speed was 1.0 to 1.5 m/s to create a "soft breeze."
The air supply chamber filter can be replaced from the floor, improving maintainability.
The air supply chamber extends 500mm from the booth body to save space on the floor.
Equipped with energy-saving
and high-efficiency motor (IE3), our products achieve an average energy saving of 5% compared to conventional products (varies depending on the model)
Optional specifications
Low-noise sirocco fan specifications
Air volume adjustment inverter specifications
Base price
Please contact us for the price of the product.
specification
| format | Body dimensions Frontage (W) [mm] | Body dimensions Depth (D) [mm] | Body dimensions Ceiling height (h) [mm] | Body dimensions Total height (H) [mm] | Collection efficiency melamine paint | Collection efficiency Lacquer primer paint | Collection efficiency Acrylic urethane paint | Collection efficiency Phthalate-based acrylic paint | Noise (front of device) [dB(A)] | Average wind speed [m/s] | Exhaust fan motor output [kW] | Primary power supply phase | Primary power supply [V] | Frequency [Hz] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BBC-15H-M5 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBC-15H-M6 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBC-20H-M5 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBC-20H-M6 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBC-25H-M5 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBC-25H-M6 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBC-30H-M5 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBC-30H-M6 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBC-35H-M5 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBC-35H-M6 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBC-40H-M5 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBC-40H-M6 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBC-45H-M5 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBC-45H-M6 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
