Features

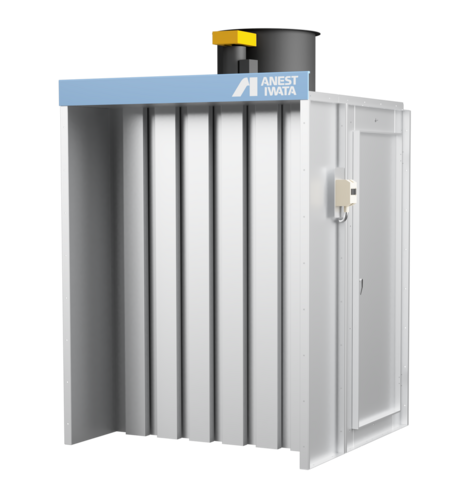

By attaching a rough cut plate (pre-baffle plate) to 8 standard baffle booth models,
the life of the baffle plate and secondary filter is extended (approximately 4 to 5 times more), contributing to lower running costs.
●Note Please note that in the case of duplicate options, the depth dimension and price of the booth body will change.
Base price
Please contact us for the price of the product.
specification
| format | Body dimensions Frontage (W) [mm] | Body dimensions Depth (D) [mm] | Body dimensions Ceiling height (h) [mm] | Body dimensions Total height (H) [mm] | Collection efficiency melamine paint | Collection efficiency Lacquer primer paint | Collection efficiency Acrylic urethane paint | Collection efficiency Phthalate-based acrylic paint | Noise (front of device) [dB(A)] | Average wind speed [m/s] | Exhaust fan motor output [kW] | Primary power supply phase | Primary power supply [V] | Frequency [Hz] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BBP-10H-M5 | 1000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 80 | 0.65 | 0.75 | -- | -- | -- |
| BBP-15H-M5 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBP-20H-M5 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBP-25H-M5 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBP-30H-M5 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBP-35H-M5 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBP-40H-M5 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBP-45H-M5 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBP-10H-M6 | 1000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 80 | 0.65 | 0.75 | -- | -- | -- |
| BBP-15H-M6 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBP-20H-M6 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBP-25H-M6 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBP-30H-M6 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBP-35H-M6 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBP-40H-M6 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBP-45H-M6 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
