Features

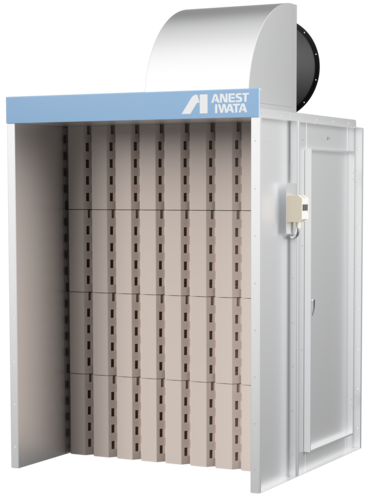

If it is not possible to install an exhaust duct at the top of a standard baffle booth, a 90° bend duct can be used to exhaust from the back.


specification

formatBody dimensions Frontage (W) [mm]Body dimensions Depth (D) [mm]Body dimensions Ceiling height (h) [mm]Body dimensions Total height (H) [mm]Collection efficiency melamine paintCollection efficiency Lacquer primer paintCollection efficiency Acrylic urethane paintCollection efficiency Phthalate-based acrylic paintNoise (front of device) [dB(A)]Average wind speed [m/s]Exhaust fan motor output [kW]Primary power supply phasePrimary power supply [V]Frequency [Hz]
BBR-10H-M5 1000 1500 2000 2475 96 92 88 90 80 0.65 0.75 -- -- --
BBR-15H-M5 1500 1500 2000 2475 96 92 88 90 76 0.65 0.75 -- -- --
BBR-20H-M5 2000 1500 2000 2475 96 92 88 90 82 0.65 1.5 -- -- --
BBR-25H-M5 2500 1500 2000 2475 96 92 88 90 82 0.65 1.5 -- -- --
BBR-30H-M5 3000 1500 2000 2545 96 92 88 90 79 0.65 2.2 -- -- --
BBR-35H-M5 3500 1500 2000 2545 96 92 88 90 79 0.65 2.2 -- -- --
BBR-40H-M5 4000 1500 2000 2545 96 92 88 90 84 0.65 3.7 -- -- --
BBR-45H-M5 4500 1500 2000 2545 96 92 88 90 84 0.65 3.7 -- -- --
BBR-10H-M6 1000 1500 2000 2475 96 92 88 90 80 0.65 0.75 -- -- --
BBR-15H-M6 1500 1500 2000 2475 96 92 88 90 76 0.65 0.75 -- -- --
BBR-20H-M6 2000 1500 2000 2475 96 92 88 90 82 0.65 1.5 -- -- --
BBR-25H-M6 2500 1500 2000 2475 96 92 88 90 82 0.65 1.5 -- -- --
BBR-30H-M6 3000 1500 2000 2545 96 92 88 90 79 0.65 2.2 -- -- --
BBR-35H-M6 3500 1500 2000 2545 96 92 88 90 79 0.65 2.2 -- -- --
BBR-40H-M6 4000 1500 2000 2545 96 92 88 90 84 0.65 3.7 -- -- --
BBR-45H-M6 4500 1500 2000 2545 96 92 88 90 84 0.65 3.7 -- -- --
