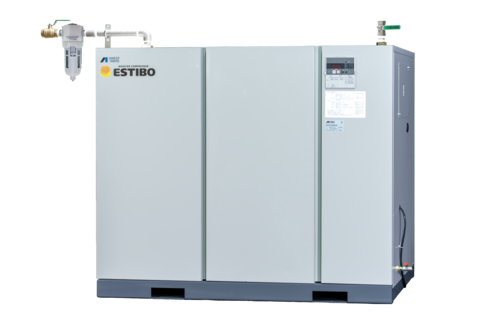

This is a booster compressor that can boost the pressure of low pressure (0.5~1.0MPa) compressed air/nitrogen gas to 3.0MPa. A package type with excellent quietness.

Purpose

This is a booster compressor that can boost the pressure of low pressure (0.5~1.0MPa) compressed air/nitrogen gas to 3.0MPa.

Features

・Since it is a package type, the operation noise is quiet.
- Lubricating oil is used in the compressor body, resulting in efficient compression and high durability.
・Control pressure can be easily set. Energy can be saved by lowering the upper limit pressure according to the required pressure.

Specification

format[Electric motor] Output [kW]Control pressure lower limit [MPa]Control pressure upper limit [MPa]Discharge air volume 50Hz/60Hz [L/min]
CLBS55C-30 7.5 2.65 3.00 1650
CLBS75C-30 7.5 2.65 3.00 2230
CLBS110-30 11 2.7 3.0 2810



・The amount of air discharged is the average value of the amount of air discharged at maximum pressure converted to the suction state (atmospheric pressure).
Please contact us for guaranteed values.
-Noise values ​​are measured in an anechoic chamber under full load, so noise values ​​may vary depending on the customer's usage environment.
Note) Specifications are subject to change without notice due to product improvement.
