[Pumping speed] 208/255 L/min (50/60Hz)
[Ultimate pressure] ≦750 Pa

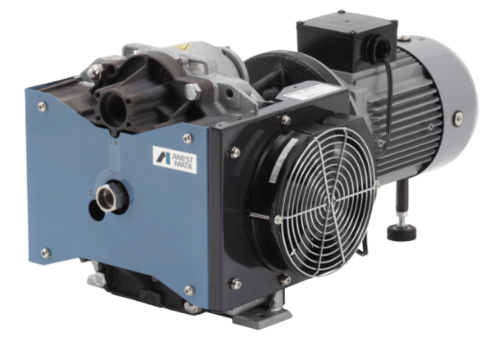

Bring the scroll vacuum pump closer to you. Model for low vacuum area.
For vacuum forming, suction conveyance, etc.

Features

・Clean exhaust:
　No lubricating oil or water seal is used in the vacuum pump section, and there are no bearings on the gas contact parts.
　Completely dry type, provides clean vacuum and no oil smoke.
・
　In addition to the completely dry structure, the air flush function
　improves the discharge of water vapor and foreign matter, as well as durability and maintenance cycles.
・Reliable ultimate pressure
　The degree of vacuum does not drop even during long-term operation, so work efficiency is different.
・The scroll
　has a low-noise rotating motion, so the sound quality is soft. It can be installed close to work.
・Low running cost
　If the GVS-250 is used normally, maintenance is required every two years.
　Reduce daily management costs.
-Special specifications
　We also accept fluororubber specifications, different voltage specifications, and other specifications tailored to customer needs.
　Please contact us for details.

Use applications

Vacuum chuck, vacuum cleaning and drying (water-based only), vacuum transport, vacuum packaging
, vacuum forming, powder transport (requires prevention of inflow of powder, etc.), gas degassing, leak testing, etc.

Safety precautions

This vacuum pump has clean exhaust specifications. Do not pour gases that are toxic to the human body, explosive or flammable gases, corrosive gases, chemicals, solvents, powders, etc.
Please note that we cannot undertake maintenance for pumps that exhaust special gases, etc.
Please use within the ambient temperature range of 5℃ to 40℃.

specification
