Features
・The lineup includes gravity type (HP-G3/G5), suction type (HP-G6), and three models with different nozzle sizes.
- Can be sprayed in both flat and round patterns.
- Spray gun type with improved handling.
・The nozzle and center cup (HP-G3/G5) are made of rust-resistant stainless steel material.
-HP-G3 and G5 bodies have a chic finish in twilight chrome.
* Even with a small compressor, particles will become coarse if there is insufficient air.
We recommend using a 2-cylinder or 125W or higher compressor.
specification
| format | Paint supply method | Spraying method | Nozzle diameter [mm] | Container capacity [mL] | Standard spray pressure [MPa] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Noise value [dB] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|

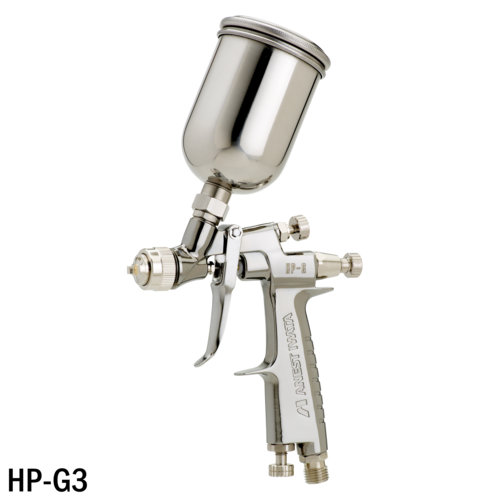

| HP-G3 | gravity type | Round blow/flat blow | 0.3 | 130 | 0.1～0.15 | 5～40 | -- | -- | -- | trigger action |

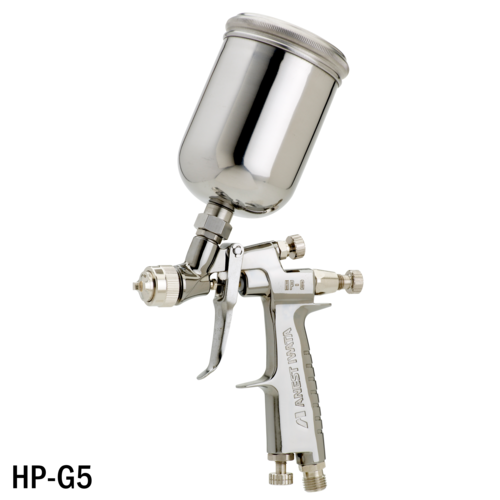

| HP-G5 | gravity type | Round blow/flat blow | 0.5 | 220 | 0.1～0.15 | 5～40 | -- | -- | -- | trigger action |

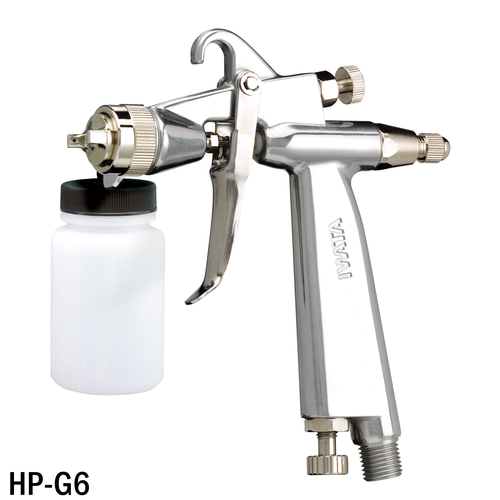

| HP-G6 | Suction type | Round blow/flat blow | 0.6 | 112 | 0.1～0.15 | 5～40 | -- | -- | -- | trigger action |
