Features
- Comes standard with an "air adjustment knob" that allows for subtle air volume adjustments.
- Comes standard with a "preset handle" that allows you to adjust the amount of paint sprayed.
- Special effects ranging from fine lines to blur and stone-grain patterns are possible.
・Uses needle packing with excellent solvent resistance.
- Equipped as standard with a button oscillator chuck that is easy to disassemble and clean.
specification
| format | Paint supply method | Spraying method | Nozzle diameter [mm] | Container capacity [mL] | Standard spray pressure [MPa] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Noise value [dB] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|

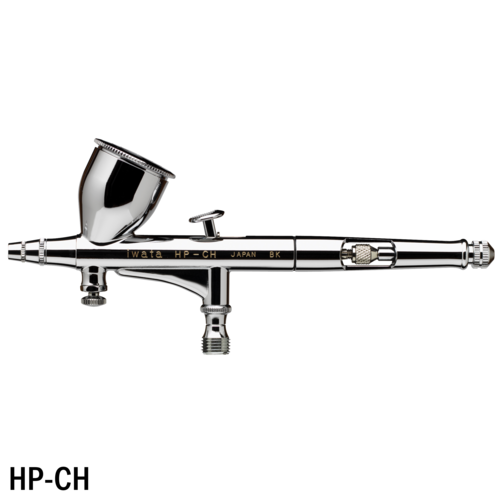

| HP-CH | gravity type | Full blow | 0.3 | 7.0 | 0.10～0.29 | 5～40 | -- | -- | -- | double action |

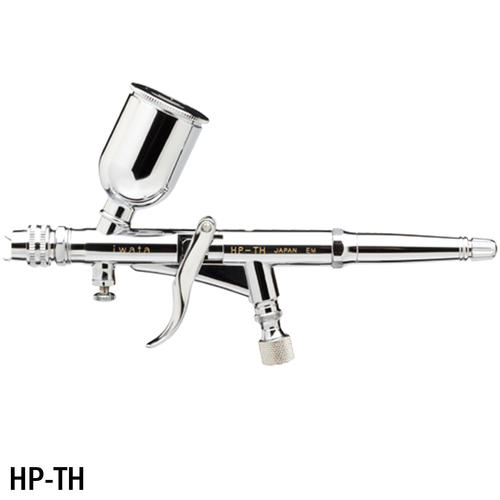

| HP-TH | gravity type | Round blow/flat blow | 0.5 | 15 | 0.10～0.15 | 5～40 | -- | -- | Center cup (HPA-CB1) | trigger action |
| HP-AH | gravity type | Full blow | 0.2 | 0.4 | 0.10～0.29 | 5～40 | -- | -- | -- | double action |

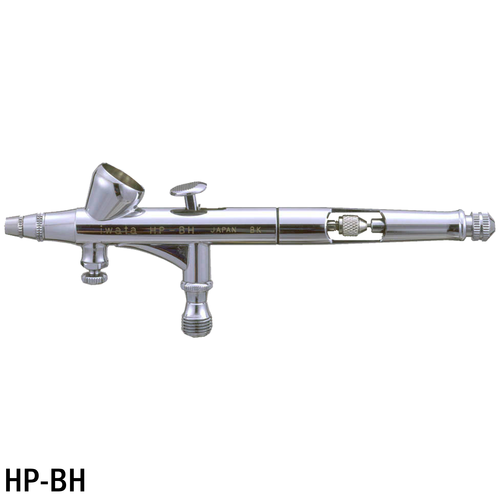

| HP-BH | gravity type | Full blow | 0.2 | 1.5 | 0.10～0.29 | 5～40 | -- | -- | -- | double action |
