Features
- Comes standard with a "preset handle" that allows you to adjust the amount of paint sprayed.
・Uses needle packing with excellent solvent resistance.
-Equipped with a button oscillator check as standard, which makes disassembly and cleaning easy.
- Lineup with nozzle diameters ranging from 0.2 to 0.3 mm.
specification
| format | Paint supply method | Spraying method | Nozzle diameter [mm] | Container capacity [mL] | Standard spray pressure [MPa] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Noise value [dB] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|

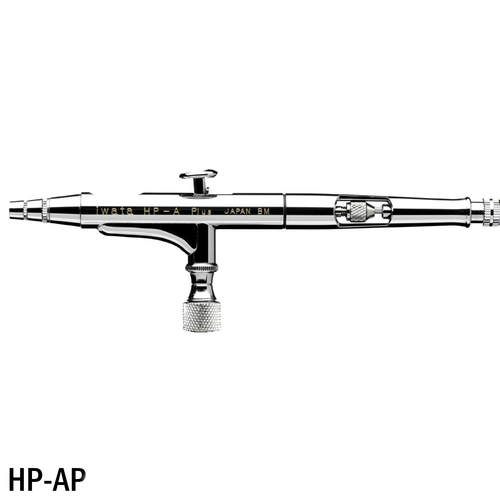

| HP-AP | gravity type | Full blow | 0.2 | 0.4 | 0.1～0.29 | 5～40 | -- | -- | -- | double action |

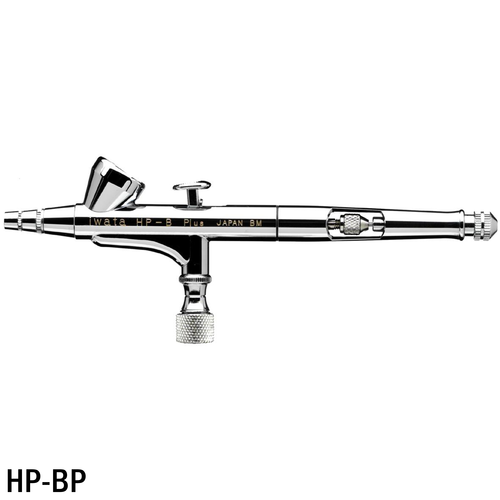

| HP-BP | gravity type | Full blow | 0.2 | 1.5 | 0.1～0.29 | 5～40 | -- | -- | -- | double action |

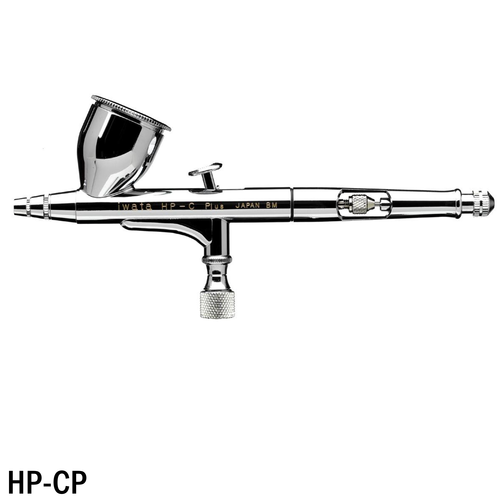

| HP-CP | gravity type | Full blow | 0.3 | 7.0 | 0.1～0.29 | 5～40 | -- | -- | -- | double action |

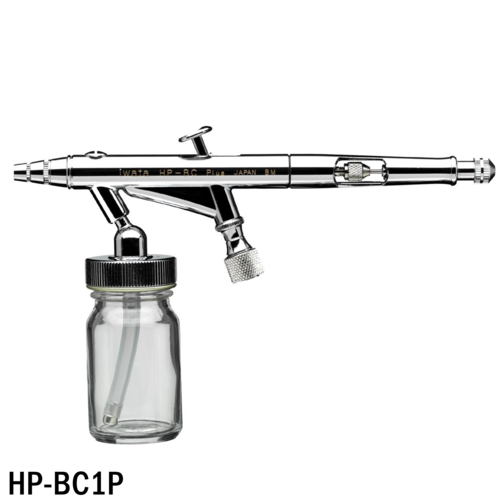

| HP-BC1P | Suction type | Full blow | 0.3 | 20 | 0.1～0.29 | 5～40 | -- | -- | glass bottle | double action |
