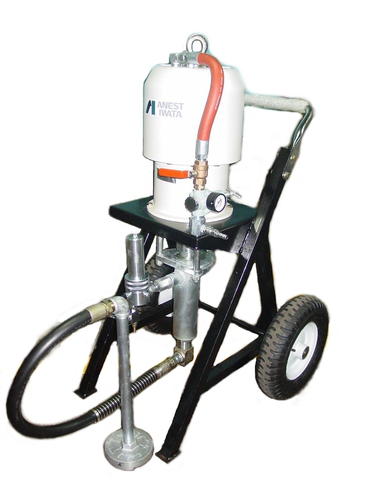

Features

・Recommended for multi-coating with high/medium viscosity paint
, thick coating with large discharge rate
, painting with high viscosity paint that is difficult to atomize,
and painting at high and remote locations using a long hose .


Selection list by paint (application)

・Lacquer (metal/woodworking): 〇
・Melamine (general metal): 〇
・Chassis paint (vehicle): 〇
・Phthalic acid (vehicle): 〇
・Water-based paint (architecture): 〇
・Synthetic resin blend paint (architecture) :〇
・Acrylic (general metal):〇
・Vinyl paint (architecture/metal):〇
・Red lead (steel frame):〇
・General rust prevention paint (steel frame):〇
・Synthetic resin varnish (woodworking):〇
・Epoxy resin (General metals): ◎
・Urethane (woodworking): 〇
・Ship bottom paint (shipbuilding): ◎
・Chlorinated rubber-based (shipbuilding): ◎
・Tar epoxy (shipbuilding/metal): 〇
・Single layer elastic paint (architecture): 〇


Features of plunger pump

Airless painting is a painting method in which high pressure is applied directly to the paint using a plunger pump or diaphragm pump, and the paint is sprayed through a small single hole (nozzle tip) to atomize it.
Although it is inferior to air spray guns in terms of atomization, it is superior in thick coating and coating efficiency.
・Improves the working environment.Compared
 to air spray, there is less paint scattering, so you can work more hygienically.
・You can save time when working
 with paint.One coat can provide 2 to 3 times as much paint film as air spray, so work time can be significantly shortened.

 We have a lineup of over 80 types of nozzle tips, and you can choose from a variety of paint ejection amounts and pattern widths.


specification

formatMaximum usable paint pressure [MPa]Maximum discharge rate [L/min]pressure magnificationMaximum operating air pressure [MPa]Drive systemPaint outletair supply portOverall width x depth x overall height [mm]Mass [kg]Standard accessories Airless gun typeStandard accessories Paint intermediate filterStandard accessories Paint pressure gaugeStandard accessories Paint intermediate filterdrain valve
ALS-653 27 -- 45:1 -- -- G1/4B male G1/4B male 800×730×1200 86 -- With -- With With
