Purpose

Ideal for spraying ricin mortar.
There are fixed type (MG-1D) and flexible type (MG-2D) for spray direction.
*An L-shaped rotary joint (AJR-02L) is also available, which allows you to route the air hose to the back during painting so that the hose does not get in the way of painting. (For ricing gun, stucco gun, tile gun)

specification

formatPurposeAtomization methodPaint nozzle diameter ΦAir nozzle diameter ΦCapacity [L]Standard operating air pressure [MPa]Air usage [L/min]Required compressor [kW]Spraying directionMass [g]Air hose mounting screw size

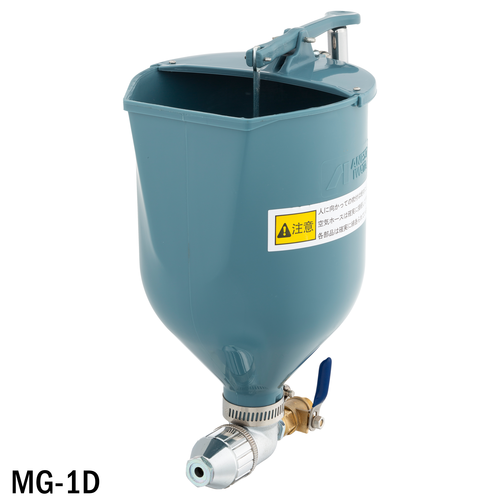

MG-1D Ricin internal mixing 3.8, 6.0, 7.0 1.5 2 0.29 76 0.75 or more Fixed type 610 G1/4B male

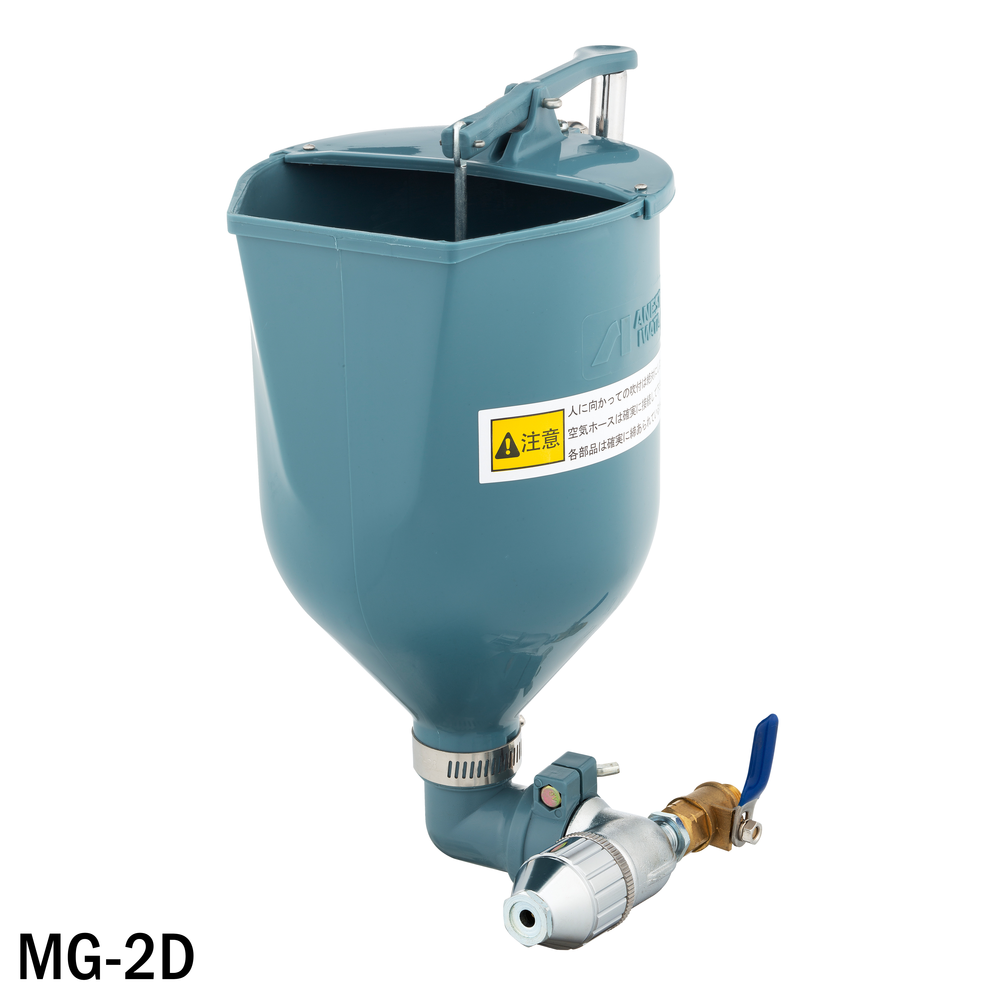

MG-2D Ricin internal mixing 3.8, 6.0, 7.0 1.5 2 0.29 76 0.75 or more Freely adjustable 660 G1/4B male
