Purpose

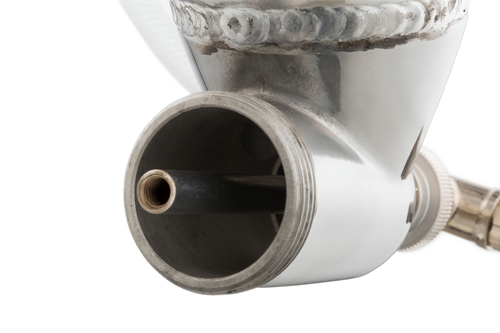

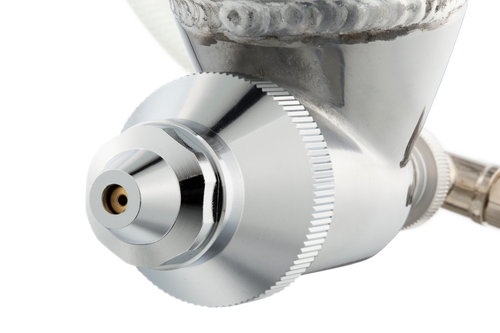

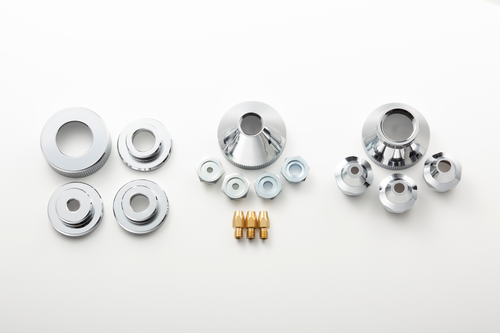

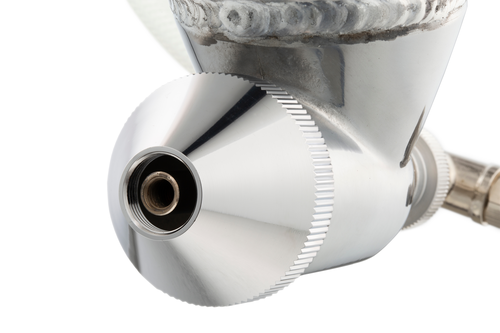

Three types of air nozzle diameters for painting construction materials, etc.
and 10 types of paint nozzle diameters are included as standard, so
this gun can be used for a variety of purposes such as ricin, stucco, tile materials, etc.
Applicable coating materials:
ricin mortar, stucco, tile
specification
| format | Purpose | Atomization method | Paint nozzle diameter Φ | Air nozzle diameter Φ | Capacity [L] | Standard operating air pressure [MPa] | Air usage [L/min] | Required compressor [kW] | Spraying direction | Mass [g] | Air hose mounting screw size |
|---|---|---|---|---|---|---|---|---|---|---|---|

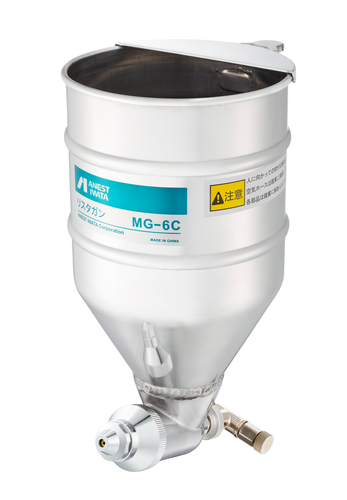

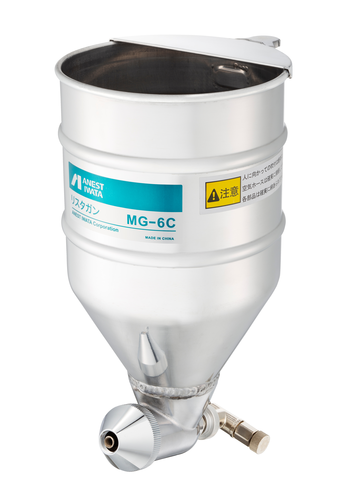

| MG-6C | Tile, mortar, stucco | internal mixing | 5, 6.5, 8/3.8, 4.5, 6, 8/2.5, 3 (also used for tiles) | 1.8/2.5/3.0 | 3 | 0.1~0.29 (1~3) | 76～280 | 0.75～2.2 | Fixed type | 710 | G1/4B male |
