Purpose

This is the most common spray gun equipped with a cap that is slightly larger than WRA-101, and can be used for a variety of industries and paints.
From metal, resin, woodwork, to furniture.
Especially for spindle painting and painting robots.


Features

・Remote adjustment of pattern width
 Since the center air and corner air are each controlled independently, the pattern width can be changed remotely during painting, making it easier to prevent overspray.
- Paint circulation is possible.
 Convenient for using paints that tend to settle, such as metallics.
- Compact body
 allows installation in a small space, and can be used with painting robots and automatic painting machines.

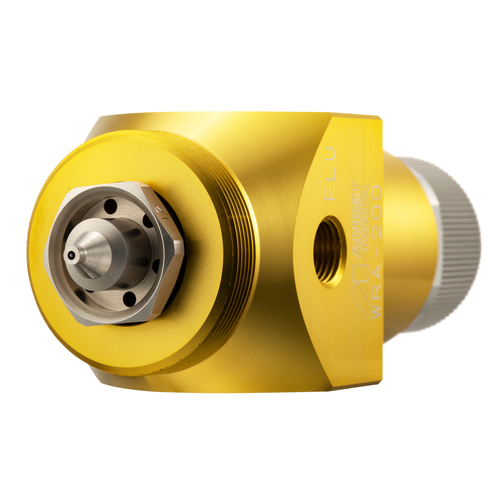

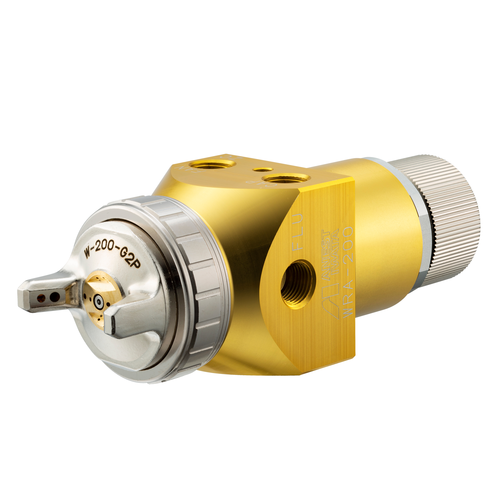

High-performance type automatic spray gun

This is an automatic spray gun that can independently control atomization air and pattern air (no built-in air valve). Therefore, by remotely changing the pattern opening when performing follow-up painting with a robot, overspray can be reduced and paint can be saved.


specification

formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure Atomizing air [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeair cap formatMass [g]Recommended paint/liquid viscosity [sec/NK-2]Blow air pressure Pattern air [MPa]Atomization statespray patternWetted parts materialBody materialRequired compressor [kW]Connection port size Atomizing airConnection size pattern airConnection port size Operating airPort size Paint/liquidPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarks

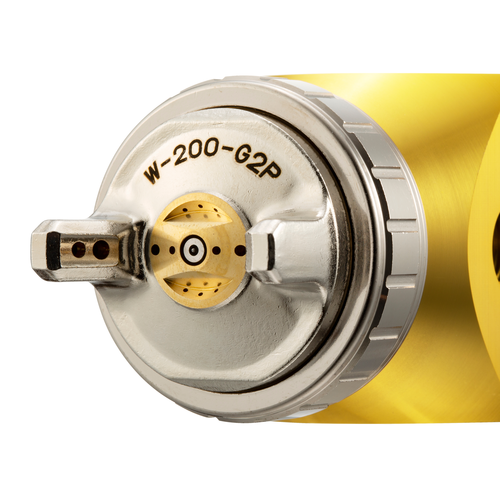

WRA-200-122 Pressure feeding type 1.2 0.24 500 400/250 530 General purpose straight nozzle G2P 325 20 0.26 Highly fine particles Round to flat blowing aluminum, stainless steel aluminum, stainless steel 5.5~7.5 Rc1/8 female Rc1/8 female Rc1/8 female Rc1/8 female -- 82.4 5~40 5~43 0.68 Brush, bolt set x 2, air nipple x 2 --
LRA-200-122P Pressure feeding type 1.2 0.14 500 300/200 500 low pressure straight nozzle G2 325 20 0.16 Highly fine particles Round to flat blowing aluminum, stainless steel aluminum, stainless steel 5.5~7.5 Rc1/8 female Rc1/8 female Rc1/8 female Rc1/8 female -- 76.9 5~40 5~43 0.68 Brush, bolt set x 2, air nipple x 2 --
