Purpose
This is the most common spray gun and can be used for a variety of industries and paints.
From metal, resin, woodwork, to furniture.
Especially for spindle painting, painting robots, and reciprocators.
From WA-101 to WIDER1A
The most important things in industrial coating products
are "quality and stability."
With diversifying applications and evolving paints, we have created spray guns that are ideal for adapting to these changes.
It has been 14 years since the debut of the WA-101, and we have poured the experience and know-how we have cultivated there into this new model "WIDER".
The design has changed from a rustic one to a more sophisticated one, and has been reborn as a model that is even easier to maintain.
Features
・Simple maintenance
・Linearly responsive pattern adjustment device
・Sophisticated design that reduces paint adhesion to the body

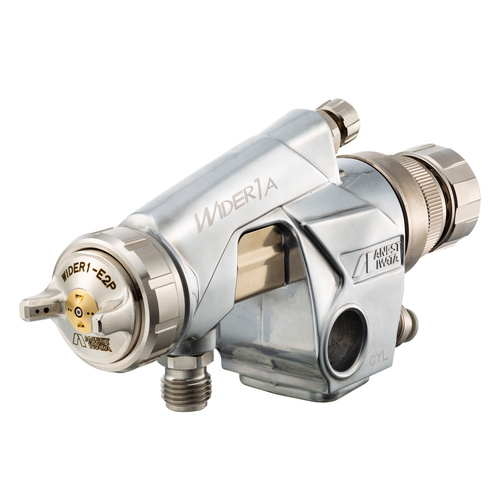

General-purpose automatic spray gun
-This series has a built-in air valve, and can be sprayed with just one three-way solenoid valve. Since atomizing air can be left in, spraying can be performed without setting up a complicated system.
・Pattern adjustment is done by manually turning the pattern adjustment device, so remote control is not possible.
Differences from the old model WA-101
The air cap set has been changed from the previous 1mm to 1.5mm, making it easier to attach and detach. Previously, a 32mm box wrench was required to attach and detach the paint adjustment device, but now it can be done without tools. Additionally, special tools were required to attach and detach the air valve seat set, but now it can be done with a 14mm box wrench.
specification
format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIDER1A-08E2P | Pressure feeding type | 0.8 | 0.29 | 150 | 190/200 | 270 | General purpose | straight nozzle | WIDER1-H2 | 400 | 20 | Highly fine particles | Round to flat blowing | stainless | stainless | 1.5~2.2 | Φ8 tube | Φ6 tube | G1/4B male | For painting small items | 83 | 5~40 | 5~43 | 0.70 | Brush, bolt set x 2, air nipple x 2 | -- | WA-101-082P |
WIDER1A-10E2P | Pressure feeding type | 1.0 | 0.29 | 200 | 220/200 | 270 | General purpose | straight nozzle | WIDER1-H2 | 400 | 20 | Highly fine particles | Round to flat blowing | stainless | stainless | 1.5~2.2 | Φ8 tube | Φ6 tube | G1/4B male | For painting small items | 83 | 5~40 | 5~43 | 0.70 | Brush, bolt set x 2, air nipple x 2 | -- | WA-101-102P |
WIDER1A-10E1 | Pressure feeding type | 1.0 | 0.29 | 100 | 140/200 | 90 | General purpose | straight nozzle | WIDER1-E1 | 400 | 20 | General-purpose fine particles | Round to flat blowing | stainless | stainless | 1.5~2.2 | Φ8 tube | Φ6 tube | G1/4B male | For painting small items | 83 | 5~40 | 5~43 | 0.70 | Brush, bolt set x 2, air nipple x 2 | -- | WA-101-101P |
WIDER1A-13H2 | Pressure feeding type | 1.3 | 0.29 | 250 | 230/200 | 260 | General purpose | straight nozzle | WIDER1-H2 | 400 | 20 | Highly fine particles | Round to flat blowing | stainless | stainless | 1.5~2.2 | Φ8 tube | Φ6 tube | G1/4B male | For painting small items | 83 | 5~40 | 5~43 | 0.70 | Brush, bolt set x 2, air nipple x 2 | -- | WA-101-132P |
WIDER1A-15H2 | Pressure feeding type | 1.5 | 0.29 | 270 | 255/200 | 260 | General purpose | straight nozzle | WIDER1-H2 | 400 | 20 | Highly fine particles | Round to flat blowing | stainless | stainless | 1.5~2.2 | Φ8 tube | Φ6 tube | G1/4B male | For painting small items | 83 | 5~40 | 5~43 | 0.70 | Brush, bolt set x 2, air nipple x 2 | -- | WA-101-152P |
WIDER1A-05R | Pressure feeding type | 0.5 | 0.29 | 20 | 35/200 | 40 | General purpose | straight nozzle | WIDER1-H2 | 400 | 20 | Highly fine particles | Round to flat blowing | stainless | stainless | 1.5~2.2 | Φ8 tube | Φ6 tube | G1/4B male | For painting small items | 83 | 5~40 | 5~43 | 0.70 | Brush, bolt set x 2, air nipple x 2 | -- | WA-101-R05 |
