Purpose
Ideal for large-scale high-quality resin painting (bumpers, spoilers, rear garnishes, etc.). Especially for spindle painting and painting robots.
Features
・High-density flat pattern
・Main body made entirely of titanium (compatible with various paints including water-based ones)
・Paint path structure with little paint buildup

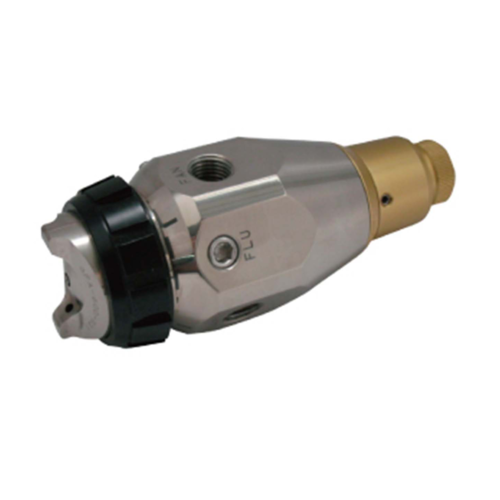

High-performance type automatic spray gun
This is an automatic spray gun that can independently control atomization air and pattern air (no built-in air valve). Therefore, by remotely changing the pattern opening when performing follow-up painting with a robot, overspray can be reduced and paint can be saved.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GFA-600-122P | Pressure feeding type | 1.2 | 0.2 | 200 | 160/200 | 600 | General purpose | straight nozzle | G21 | 680 | 12 | 0.40 | Highly fine particles | Round to flat blowing | titanium, stainless steel | Titanium | 5.5～7.5 | G1/4 female | G1/4 female | Rc1/8 female | G1/8 female | -- | 89.3 | 5～40 | 5～43 | 0.68 | Hexagon wrench, brush, cross-recessed countersunk screw, elbow union (for atomization, pattern air) x 2, elbow union (for operating air), nozzle piston ASSY | -- |
