Features

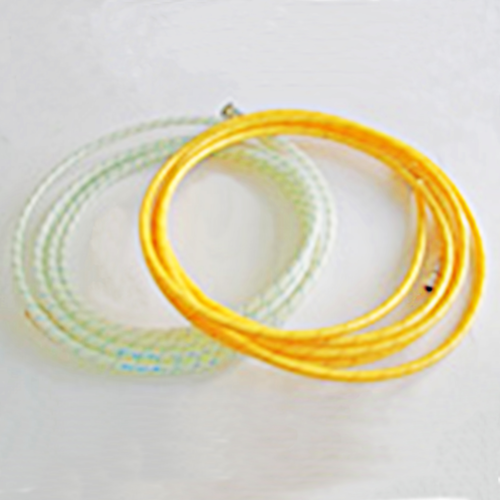

This is a hose series specifically for electrostatic guns that includes a set of joints.
specification
| format | length [m] | Air hose type [inner diameter Φ×m] | Air hose connection diameter | paint hose format | Paint hose connection diameter | Applicable electrostatic coating machine type | Total length x width x height [mm] | Operating environment humidity range [%] | Operating environment temperature range [℃] | Power supply used |
|---|---|---|---|---|---|---|---|---|---|---|
| E-HS-M15X | Ten | EAHU series (6.2×10) | With joints on both ends (G1/4 female x 2) | PHN610 (inner diameter Φ6.5 x 10m) | With joints on both ends (G3/8 female, G1/4 female) | E-M15C, E-M25, E-MW50, E-MW100 | -- | -- | -- | - |
| E-HS-M15Y | 15 | EAHU series (6.2×15) | With joints on both ends (G1/4×2) | PHN615 (inner diameter Φ6.5×15m) | With joints on both ends (G3/8 female, G1/4) | E-M15C, E-M25, E-MW50, E-MW100 | -- | -- | -- | - |
| E-HS-M15Z | 20 | EAHU series (inner diameter Φ6.2 x 20m) | With joints on both ends (G1/4×2) | PHN620 (inner diameter Φ6.5×20m) | With joints on both ends (G3/8 female, G1/4) | E-M15C, E-M25, E-MW50, E-MW100 | -- | -- | -- | - |
