Features

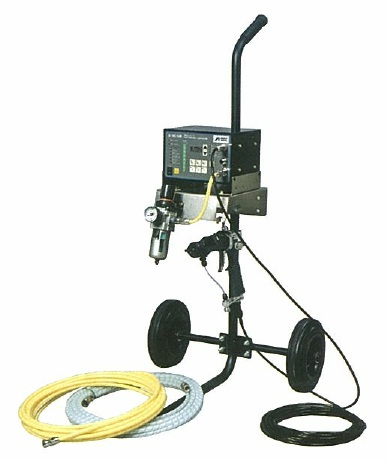

・A unit consisting of a solvent electrostatic gun, an electrostatic controller, and hoses.
- Can be moved freely and used without fixing the installation location.
・You can use it immediately by connecting air from the compressor and connecting it to the paint supply device.
specification
| format | old model | Unit configuration Electrostatic gun | Unit configuration controller | Unit configuration Paint hose set | Unit configuration Air hose set | Unit configuration cart | Maximum working pressure [MPa] | paint/liquid | solvent/aqueous | Body material | Operating ambient temperature [℃] | Ambient humidity [%RH] | Total length x width x height [mm] | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E-C15-13C1X | -- | E-M15C-13C1X | E-SC12B | 10m (G3/8 female x G1/4 female) | 10m (G1/4 female x G1/4 female) | With air pressure reducing valve | MAX:0.68 | paint | solvent | -- | 5～40 | 90 or less (no condensation) | -- | With air pressure reducing valve |
| E-C15-13C5X | -- | E-M15C-13C5X | E-SC12B | 10m (G3/8 female x G1/4 female) | 10m (G1/4 female x G1/4 female) | With air pressure reducing valve | MAX:0.68 | paint | solvent | -- | 5～40 | 90 or less (no condensation) | -- | With air pressure reducing valve |
| E-C15-13L1X | -- | E-M15C-13L1X | E-SC12B | 10m (G3/8 female x G1/4 female) | 10m (G1/4 female x G1/4 female) | With air pressure reducing valve | MAX:0.68 | paint | solvent | -- | 5～40 | 90 or less (no condensation) | -- | With air pressure reducing valve |
