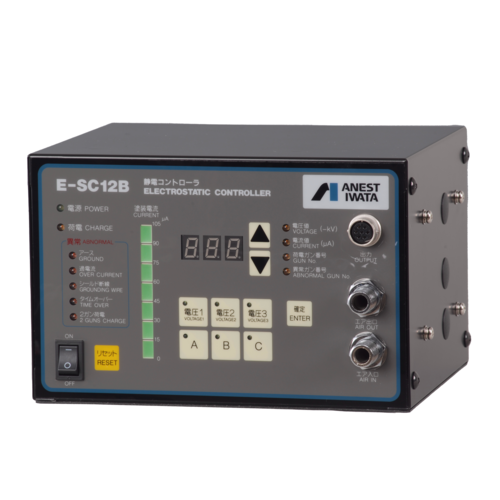

Intelligent controller that brings out the full performance of electrostatic guns

・Earth abnormality detection
・Overcurrent abnormality detection
・Shield disconnection detection
・Time over detection
・Metal bridge abnormality avoidance function

*Metal bridge abnormality avoidance function Patented No. 3335937
*Seeder disconnection detection Patented No. 3490255

specification

formatOutput voltage [kV]Input voltage [V]Output current [A]Power consumption [W]Charge ON/OFF mechanismMass [g]Operating ambient temperature [℃]Ambient humidity [%RH]Maximum working pressure [MPa]Overall length x overall width x overall height [mm]Accessories Low voltage cable [m]remarks
E-SC12B MAX AC12 (electrostatic controller alone) AC100~120 50/60Hz single phase (can be changed to 200~240V single phase) MAX 80μ (electrostatic gun discharge current) about 35 Air flow switch type (air joint IN/OUT size: G1/4B male) Approximately 3,100 5～40 90 Air: 0.68 Paint: 0.35 357×125×150 Ten Paint hose and air hose sold separately
E-SC12BH MAX AC12 (electrostatic controller alone) AC100~12050/60Hz single phase (can be changed to 200~240V single phase) MAX 80μ (electrostatic gun discharge current) about 35 Air flow switch type (air joint IN/OUT size: G1/4B male) Approximately 3,100 5～40 90 Air: 0.68 Paint: 0.35 357×125×150 Ten Paint hose and air hose sold separately
