What is a glaze (abrasive functional liquid) spray gun?
A spray gun dedicated to spraying glaze on sanitary ware (toilets, wash basins, etc.), tableware, enamel products, etc. In addition to glazes, it can also be used to spray abrasives, highly abrasive functional agents, and Teflon.
Features

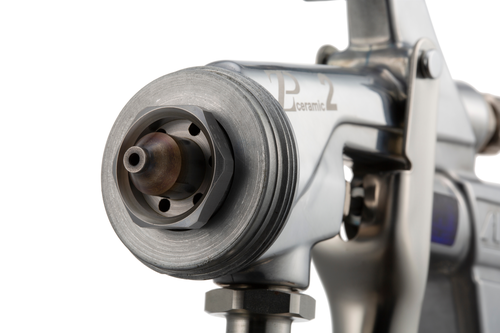

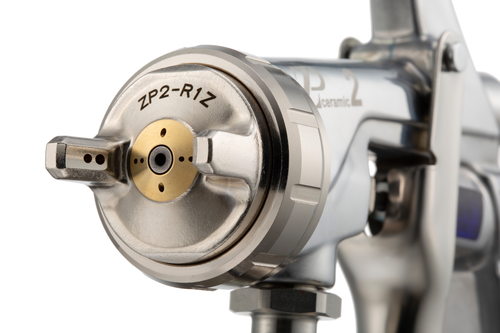

The nozzle and needle are made of carbide material with excellent wear resistance, and are equipped with a special cap that can atomize even highly viscous liquids.
Main unit features
・Ergonomics design with emphasis on functionality
・Simple maintenance
・Linally responsive pattern adjustment device
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Connection port size Air | Connection diameter Paint | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZP2-H15 | Pressure feeding type | 1.5 | 0.34 | 500 | 330/250 | 500 | General purpose | straight nozzle | ZP2-R1Z | -- | 385 | 20 | General-purpose fine particles | Round to flat blowing | Carbide, stainless steel | 5.5~7.5 | G1/4B male | G3/8 male | -- | 85 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
| ZP2-H20 | Pressure feeding type | 2.0 | 0.34 | 670 | 350/250 | 500 | General purpose | straight nozzle | ZP2-R1Z | -- | 385 | 20 | General-purpose fine particles | Round to flat blowing | Carbide, stainless steel | 5.5~7.5 | G1/4B male | G3/8 male | -- | 85 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
| ZP2-H25 | Pressure feeding type | 2.5 | 0.34 | 760 | 370/250 | 500 | General purpose | straight nozzle | ZP2-R1Z | -- | 385 | 20 | General-purpose fine particles | Round to flat blowing | Carbide, stainless steel | 5.5~7.5 | G1/4B male | G3/8 male | -- | 85 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
