Features

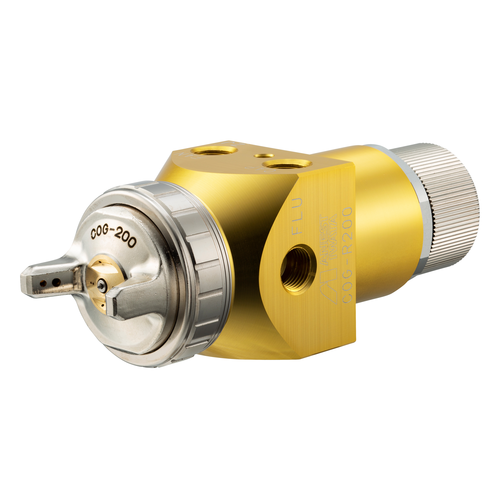

This is a special spray gun for adhesion processes to automobile interior parts, woodwork, rubber products, etc. The viscosity range that can be sprayed is within 10,000 cps. Even with highly viscous adhesives, it achieves highly atomized particles and a wide pattern, allowing stable application even with large spray volumes.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COG-R200-12 | Pressure feeding type | 1.2 | 0.1～0.2 | 150 | 265 | 275 | General purpose | straight nozzle | COG-200 | 310 | 20 | Catalog 0.15 Instruction manual 0.05~0.24 0.05~0.20 | Highly fine particles | Round to flat blowing | aluminum, stainless steel | Aluminum | 5.5～7.5 | Rc1/8 male | Rc1/8 male | Rc1/8 male | Rc1/8 male | For adhesive application | 76.9 | 5~40 | 5~43 | 0.68 | countersunk screw | -- |
| COG-R200-18 | Pressure feeding type | 1.8 | 0.1～0.2 | 250 | 390 | 275 | General purpose | straight nozzle | COG-200 | 310 | 20 | Catalog 0.15 Instruction manual 0.05~0.24 0.05~0.20 | Highly fine particles | Round to flat blowing | aluminum, stainless steel | Aluminum | 5.5～7.5 | Rc1/8 | Rc1/8 | Rc1/8 male | Rc1/8 | For adhesive application | 76.9 | 5~40 | 5~43 | 0.68 | countersunk screw | -- |
