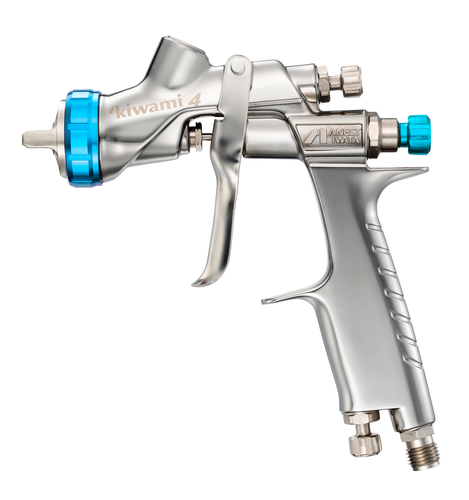

Inheriting the features of WIDER4 and making it easier to use and design than ever before.

With the complete model change of the W/LPH-400 for the first time in 23 years, the new ``kiwami4'' has been added to the ``kiwami'' brand of automotive repair spray guns. Inheriting the features of the redesigned WIDER4, the functionality and design have been renewed, making it easier to use and more sophisticated than ever before.


Features

Split nozzles (3 nozzles) enable a thin film flat pattern, which improves unevenness in difficult-to-paint colors, whether solvent or water-based, and reduces dripping and pooling during clear coating.

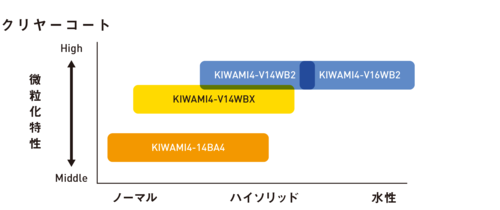

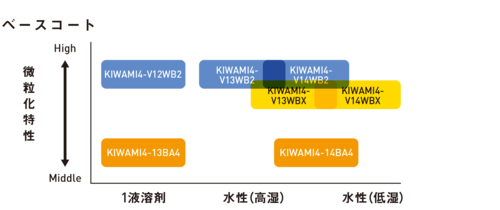

Φ1.2mm is recommended for one-component base coat, Φ1.3/1.4mm is recommended for water-based paint, and Φ1.6mm is recommended for water-based clear coat.


Main unit features

・Ergonomic design with an emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
・Adopts twilight chrome plating that is easy to clean and has strong corrosion resistance


Differences from the old model W-400

The overall weight has been reduced by 25g compared to the conventional format. In addition, by reducing the overall length of the main body and extending the grip, we have moved the center of gravity closer to your hand. This will greatly improve handling, reduce fatigue, and improve work efficiency.


specification

formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeair cap formatCap internal pressure [MPa]Mass [g]Recommended paint/liquid viscosity [sec/NK-2]Atomization statespray patternWetted parts materialRequired compressor [kW]Connection port size AirConnection diameter PaintPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarksold model
KIWAMI4-V12WB2 gravity type 1.2 0.18 120 290/200 390 General purpose split nozzle KIWAMI4-WB2 -- 355 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4 female auto repair 84 5~40 5~43 0.70 brush -- W-400WB-122G
KIWAMI4-V13WB2 gravity type 1.3 0.18 160 300/200 390 General purpose split nozzle KIWAMI4-WB2 -- 355 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4 female auto repair 84 5~40 5~43 0.70 brush -- W-400WB-132G
KIWAMI4-V14WB2 gravity type 1.4 0.18 160 310/200 390 General purpose split nozzle KIWAMI4-WB2 -- 355 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4 female auto repair 84 5~40 5~43 0.70 brush -- W-400WB-142G
KIWAMI4-V16WB2 gravity type 1.6 0.18 250 340/200 390 General purpose split nozzle KIWAMI4-WB2 -- 355 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4 female auto repair 84 5~40 5~43 0.70 brush -- W-400WB-162G
