Purpose

For high quality painting. Recommended for automobiles, automobile parts, etc.


Features

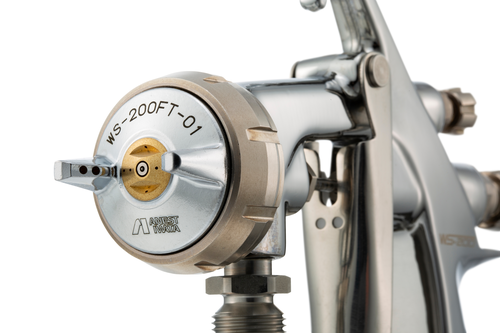

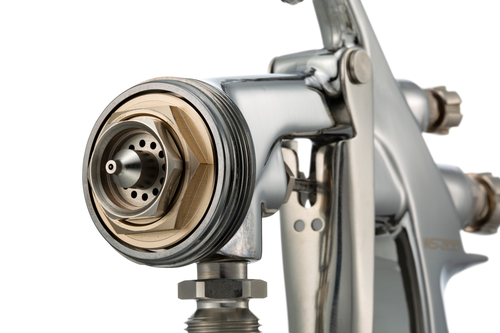

・Equipped with a dedicated baffle ring that improves the stability of pattern air, enabling stable pattern shapes even at low pressure . The pattern does not easily collapse even under particularly harsh conditions such as low pressure areas, reducing paint defects. Also, it is easy to clean as it is removable.
- Improved handling feeling The body, grip, trigger, and various knobs have all been designed based on ergonomics. In particular, the stainless steel trigger with resin pad allows for smooth and delicate operation. In addition, the design focuses on the center of gravity, making it less tiring even when working for long periods of time.
- The pattern opening is designed to be easy to operate intuitively and to linearly follow the pattern adjustment device's opening and pattern width.
- Improved durability and ease of cleaning
A forged body is used, which improves the strength of the body compared to a cast body (normal spray gun). It is also easy to clean because it is chrome plated.


specification

formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeair cap formatCap internal pressure [MPa]Mass [g]Recommended paint/liquid viscosity [sec/NK-2]Atomization statespray patternWetted parts materialRequired compressor [kW]Connection port size AirConnection diameter PaintPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarksold model
WS-200FT-0801 Pressure feeding type 0.8 0.25 200 240/150 380 General purpose straight nozzle WS-200FT-01 -- 395 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G3/8B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 83 5~40 5-43 0.7 brush -- --
WS-200FT-1001 Pressure feeding type 1.0 0.25 200 210/150 380 General purpose straight nozzle WS-200FT-01 -- 395 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G3/8B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 83 5~40 5-43 0.7 brush -- --
WS-200FT-1201 Pressure feeding type 1.2 0.25 200 210/150 380 General purpose straight nozzle WS-200FT-01 -- 395 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G3/8B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 83 5~40 5-43 0.7 brush -- --
WS-200FT-0802 Pressure feeding type 0.8 0.30 200 215/150 475 General purpose straight nozzle WS-200FT-02 -- 395 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G3/8B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 83 5~40 5-43 0.7 brush -- --
WS-200FT-1002 Pressure feeding type 1.0 0.30 250 250/150 475 General purpose straight nozzle WS-200FT-02 -- 395 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G3/8B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 83 5~40 5-43 0.7 brush -- --
WS-200FT-1202 Pressure feeding type 1.2 0.30 300 255/150 475 General purpose straight nozzle WS-200FT-02 -- 395 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G3/8B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 83 5~40 5-43 0.7 brush -- --
