Purpose
For high quality painting. Recommended for automobiles, automobile parts, etc.
Features

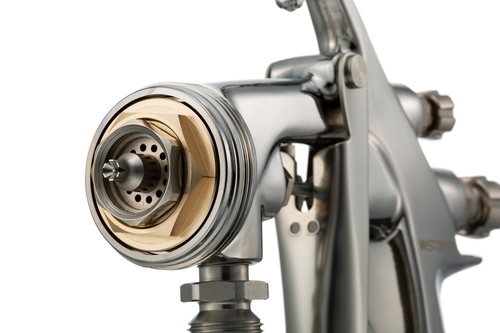

・Equipped with a dedicated baffle ring that improves the stability of pattern air, enabling stable pattern shapes even at low pressure . The pattern does not easily collapse even under particularly harsh conditions such as low pressure areas, reducing paint defects. Also, it is easy to clean as it is removable.

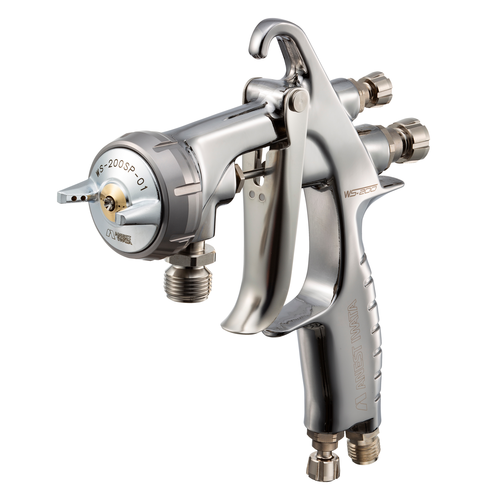

- Improved handling feeling The body, grip, trigger, and various knobs have all been designed based on ergonomics. In particular, the stainless steel trigger with resin pad allows for smooth and delicate operation. In addition, the design focuses on the center of gravity, making it less tiring even when working for long periods of time.
- The pattern opening is designed to be easy to operate intuitively and to linearly follow the pattern adjustment device's opening and pattern width.
- Improved durability and ease of cleaning
A forged body is used, which improves the strength of the body compared to a cast body (normal spray gun). It is also easy to clean because it is chrome plated.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Connection port size Air | Connection diameter Paint | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

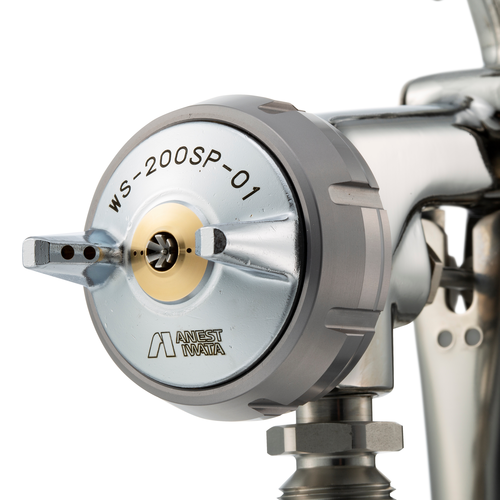

| WS-200SP-0801 | Pressure feeding type | 0.8 | 0.25 | 200 | 210/150 | 435 | General purpose | split nozzle | WS-200SP-01 | -- | 395 | 20 | Highly fine particles | Round to flat blowing | stainless | 2.2~3.7 | G1/4B male | G3/8B male | For large parts, large parts such as vehicles, and line painting. | 83 | 5～40 | 5-43 | 0.7 | brush | -- | -- |
| WS-200SP-1001 | Pressure feeding type | 1.0 | 0.25 | 250 | 230/150 | 435 | General purpose | split nozzle | WS-200SP-01 | -- | 395 | 20 | Highly fine particles | Round to flat blowing | stainless | 2.2~3.7 | G1/4B male | G3/8B male | For large parts, large parts such as vehicles, and line painting. | 83 | 5～40 | 5～43 | 0.7 | brush | -- | -- |
| WS-200SP-1201 | Pressure feeding type | 1.2 | 0.25 | 300 | 240/150 | 435 | General purpose | split nozzle | WS-200SP-01 | -- | 395 | 20 | Highly fine particles | Round to flat blowing | stainless | 2.2~3.7 | G1/4B male | G3/8B male | For large parts, large parts such as vehicles, and line painting. | 83 | 5～40 | 5-43 | 0.7 | brush | -- | -- |
