Inheriting the features of WIDER3 and making it even easier to use and design than before.

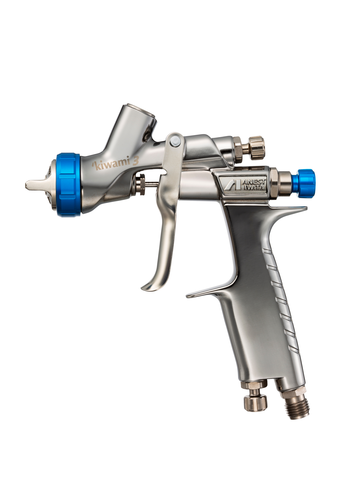

Along with the first full model change from the W-300 in 20 years, 'kiwami3' has been newly added to the 'kiwami' brand, which is dedicated to automotive repair. Inheriting the features of the redesigned WIDER3, the functionality and design have been renewed, making it easier to use and more sophisticated than ever before.


Features

Equipped with a split nozzle (3 slits), the spray pressure is 0.15MPa, yet it achieves highly atomized particles and a flat and wide pattern of 265mm.


Main unit features

・Ergonomic design with an emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
・Adopts twilight chrome plating that is easy to clean and has strong corrosion resistance


Differences from the old model W-300

The overall weight has been reduced by 5g compared to the conventional format. In addition, by reducing the overall length of the main body and extending the grip, we have moved the center of gravity closer to your hand. This will greatly improve handling, reduce fatigue, and improve work efficiency.


specification

formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeair cap formatCap internal pressure [MPa]Mass [g]Recommended paint/liquid viscosity [sec/NK-2]Atomization statespray patternWetted parts materialRequired compressor [kW]Connection port size AirConnection diameter PaintPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarksold model
KIWAMI3-V14WB2. gravity type 1.4 0.15 125 250/200 190 General purpose split nozzle KIWAMI3-WB2 -- 320 20 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4 female auto repair 70.1 5~40 5~43 0.68 brush -- W-300WB-141G
