Purpose

It can also be used for painting metal, resin, and wooden furniture, and for applying rust inhibitors to steel frames. It is also recommended for left-handed people who find it difficult to paint with side cups.

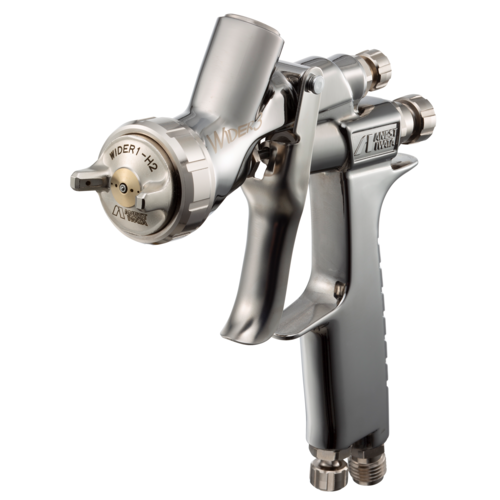

From W-300 to WIDER3

20 years have passed since the birth of W-300. We have undergone a long-awaited full model change.
It has been reborn as "WIDER3" and has completely renewed functionality and design,
making it easier to use and more sophisticated than ever before.


Features

・Ergonomic design with emphasis on functionality
・Simple maintenance
・Linear response pattern adjustment device
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)


specification



formatold modelPaint/liquid supply methodspray gun typeNozzle diameter [mm]nozzle shapeRecommended paint/liquid viscosity [sec/NK-2]Blow air pressure [MPa]Cap internal pressure [MPa]Air usage [L/min]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]air cap formatAtomization statespray patternWetted parts materialRequired compressor [kW]Mass [g]Connection port size AirConnection diameter PaintPurpose
WIDER3-10K1. WIDER3-10K1 gravity type General purpose 1.0 straight nozzle 20 0.24 -- 145 100 130/200 WIDER1-K1 Highly fine particles Round to flat blowing stainless 1.5~2.2 315 G1/4 male G1/4 female --
WIDER3-13H2 WIDER3-13H2 gravity type General purpose 1.3 straight nozzle 20 0.24 -- 225 165 175/200 WIDER1-H2 Highly fine particles Round to flat blowing stainless 1.5~2.2 315 G1/4 male G1/4 female --
