Inheriting the features of WIDER1 and making it easier to use and design than ever before.

We believe that the most important thing when it comes to automotive repair spray guns is to be able to quickly adapt to evolving paints, maximize the performance of the paints, and easily and beautifully paint. A spray gun must be the ``ultimate tool'' for our customers. 14 years have passed since the release of the 2-component paint spray gun "Bisho" series, and 10 years have passed since the release of the 1-component high solid paint spray gun "Kiwami" series. Nowadays, environmental considerations, worker safety, simplifying painting work, and improving quality are required. We aim to further raise the level of "extreme" and become the "ultimate tool" for our customers.


Features

A spray gun that is optimally matched to two-component paints. The new kiwami series has been added to the lineup while retaining the performance of the "beauty series". It can be used in a conventional manner from undercoat to base and clear.


Main unit features

・Ergonomic design with an emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
・Adopts twilight chrome plating that is easy to clean and has strong corrosion resistance


specification



formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeair cap formatCap internal pressure [MPa]Mass [g]Recommended paint/liquid viscosity [sec/NK-2]Atomization statespray patternWetted parts materialRequired compressor [kW]Connection port size AirConnection diameter PaintPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarksold model

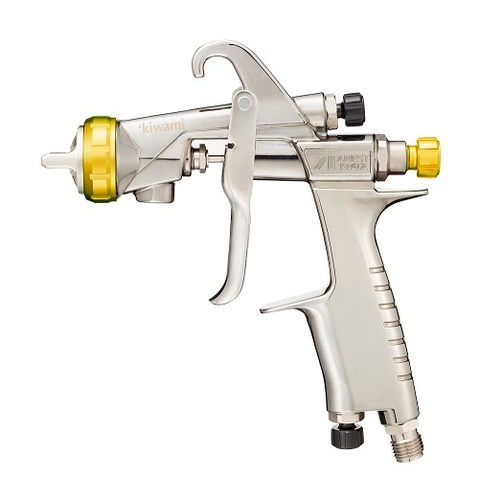

KIWAMI-1-13B4 gravity type 1.3 0.20 140 250/200 160 General purpose straight nozzle KIWAMI-1-BP4 -- 290 12 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male auto repair 79 5~40 5~43 0.70 brush -- W-101-134BPG
KIWAMI-1-14B2 gravity type 1.4 0.24 200 270/200 230 General purpose straight nozzle KIWAMI-1-BP4 -- 290 12 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male auto repair 79 5~40 5~43 0.70 brush -- W-101-142BPG
KIWAMI-1-16B2 gravity type 1.6 0.24 195 200/200 230 General purpose straight nozzle KIWAMI-1-162BP2 -- 290 20 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male auto repair 79 5~40 5~43 0.70 brush -- W-101-162BPG
