Purpose

This is the most common spray gun and can be used for a variety of industries and paints.
Automotive painting, woodworking, metal, resin, and even hobbies.

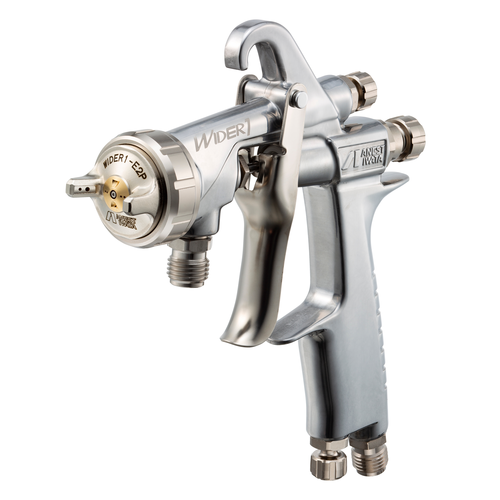

From W-101 to WIDER1 (Low pressure spray gun: LPH-101 to WIDER1L)

The most important things in industrial coating products are "quality and stability." 14 years have passed since the release of our best-selling small spray gun W-101. We have poured the experience and know-how we have cultivated around the world into this new model "WIDER."

Features

・Ergonomic design with emphasis on functionality
・Simple maintenance
・Linear response pattern adjustment device
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)

specification



formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeair cap formatCap internal pressure [MPa]Mass [g]Recommended paint/liquid viscosity [sec/NK-2]Atomization statespray patternWetted parts materialRequired compressor [kW]Connection port size AirConnection diameter PaintPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarksold model
WIDER1-08E2P Pressure feeding type 0.8 0.29 150 190/200 270 General purpose straight nozzle WIDER1-E2P -- 290 20 Highly fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-082P
WIDER1-10E2P Pressure feeding type 1.0 0.29 200 220/200 270 General purpose straight nozzle WIDER1-E3P -- 290 20 Highly fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Automotive line painting, large buses/trucks, metal, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-102P
WIDER1-13E2P Pressure feeding type 1.3 0.29 200 210/200 270 General purpose straight nozzle WIDER1-E4P -- 290 20 Highly fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Automotive line painting, metal, woodwork/furniture, adhesives 79 5～40 5-43 0.7 brush -- W-101-132P
WIDER1-15E2P Pressure feeding type 1.5 0.29 250 240/200 270 General purpose straight nozzle WIDER1-E5P -- 290 20 Highly fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Automotive line painting, metal, woodwork/furniture, steel frames, adhesives 79 5～40 5-43 0.7 brush -- W-101-152P
WIDER1-10E1S Suction type 1.0 0.24 85 120/200 75 General purpose straight nozzle WIDER1-E1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 0.4~0.75 G1/4B male G1/4B male Metal, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-101S
WIDER1-13K1S Suction type 1.3 0.24 150 155/200 145 General purpose straight nozzle WIDER1-K1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 0.4~0.75 G1/4B male G1/4B male Metal, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-131S
WIDER1-13H2S Suction type 1.3 0.24 150 160/200 225 General purpose straight nozzle WIDER1-H2 -- 290 20 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-132S
WIDER1-13H4S Suction type 1.3 0.2 140 180/200 210 General purpose straight nozzle WIDER1-H4 -- 290 12 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-134S
WIDER1-15K1S Suction type 1.5 0.24 175 170/200 145 General purpose straight nozzle WIDER1-K1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male Metal, woodwork/furniture, steel frame 79 5～40 5-43 0.7 brush -- W-101-151S
WIDER1-15H2S Suction type 1.5 0.24 170 175/200 225 General purpose straight nozzle WIDER1-H2 -- 290 20 Highly fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Large buses/trucks, metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-152S
WIDER1-18N1S Suction type 1.8 0.24 210 170/200 170 General purpose straight nozzle WIDER1-N1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Metal, woodwork/furniture, steel frame 79 5～40 5-43 0.7 brush -- W-101-181S
WIDER1-10E1G gravity type 1.0 0.24 95 130/200 75 General purpose straight nozzle WIDER1-E1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 0.4~0.75 G1/4B male G1/4B male Metal, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-101G
WIDER1-13K1G gravity type 1.3 0.24 160 170/200 145 General purpose straight nozzle WIDER1-K1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 0.4~0.75 G1/4B male G1/4B male Metal, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-131G
WIDER1-13H2G gravity type 1.3 0.24 160 175/200 225 General purpose straight nozzle WIDER1-H2 -- 290 20 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-132G
WIDER1-13H4G gravity type 1.3 0.2 155 205/200 210 General purpose straight nozzle WIDER1-H4 -- 290 12 Highly fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-134G
WIDER1-15K1G gravity type 1.5 0.24 200 180/200 145 General purpose straight nozzle WIDER1-K1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 0.75~1.5 G1/4B male G1/4B male Metal, woodwork/furniture, steel frame 79 5～40 5-43 0.7 brush -- W-101-151G
WIDER1-15H2G gravity type 1.5 0.24 190 190/200 225 General purpose straight nozzle WIDER1-H2 -- 290 20 Highly fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Large buses/trucks, metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- W-101-152G
WIDER1-18N1G gravity type 1.8 0.24 240 190/200 170 General purpose straight nozzle WIDER1-N1 -- 290 20 General-purpose fine particles Round to flat blowing stainless 1.5 G1/4B male G1/4B male Metal, woodwork/furniture, steel frame 79 5～40 5-43 0.7 brush -- W-101-181G
WIDER1L-12G2P Pressure feeding type 1.2 0.34 350 270/200 530 low pressure straight nozzle WIDER1L-G2 0.069 290 20 Highly fine particles Round to flat blowing stainless 2.2~3.7 G1/4B male G1/4B male Automotive line painting, large buses and trucks, metal, resin, woodwork and furniture 79 5～40 5-43 0.7 brush -- LPH-101-122P
WIDER1L-2-12J2S Suction type 1.2 0.1 60 170/200 200 low pressure straight nozzle WIDER1L-2-J2 0.049 290 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- LPH-101-124LVS
WIDER1L-2-14J2S Suction type 1.4 0.1 80 180/200 200 low pressure straight nozzle WIDER1L-2-J2 0.049 290 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- LPH-101-144LVS
WIDER1L-2-16J2S Suction type 1.6 0.1 95 190/200 200 low pressure straight nozzle WIDER1L-2-J2 0.049 290 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4B male Automotive line painting (correction), large buses/trucks, metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- LPH-101-164LVS
WIDER1L-2-12J2G gravity type 1.2 0.1 80 200/200 200 low pressure straight nozzle WIDER1L-2-J2 0.049 290 12 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- LPH-101-124LVG
WIDER1L-2-14J2G gravity type 1.4 0.1 130 220/200 200 low pressure straight nozzle WIDER1L-2-J2 0.049 290 12 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4B male Automotive line painting (correction), metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- LPH-101-144LVG
WIDER1L-2-16J2G gravity type 1.6 0.13 100 220/200 240 low pressure straight nozzle WIDER1L-2-J2 0.069 290 20 Highly fine particles Round to flat blowing stainless 1.5~2.2 G1/4B male G1/4B male Automotive line painting (correction), large buses/trucks, metal, resin, woodwork/furniture 79 5～40 5-43 0.7 brush -- LPH-101-164LVG
