Features

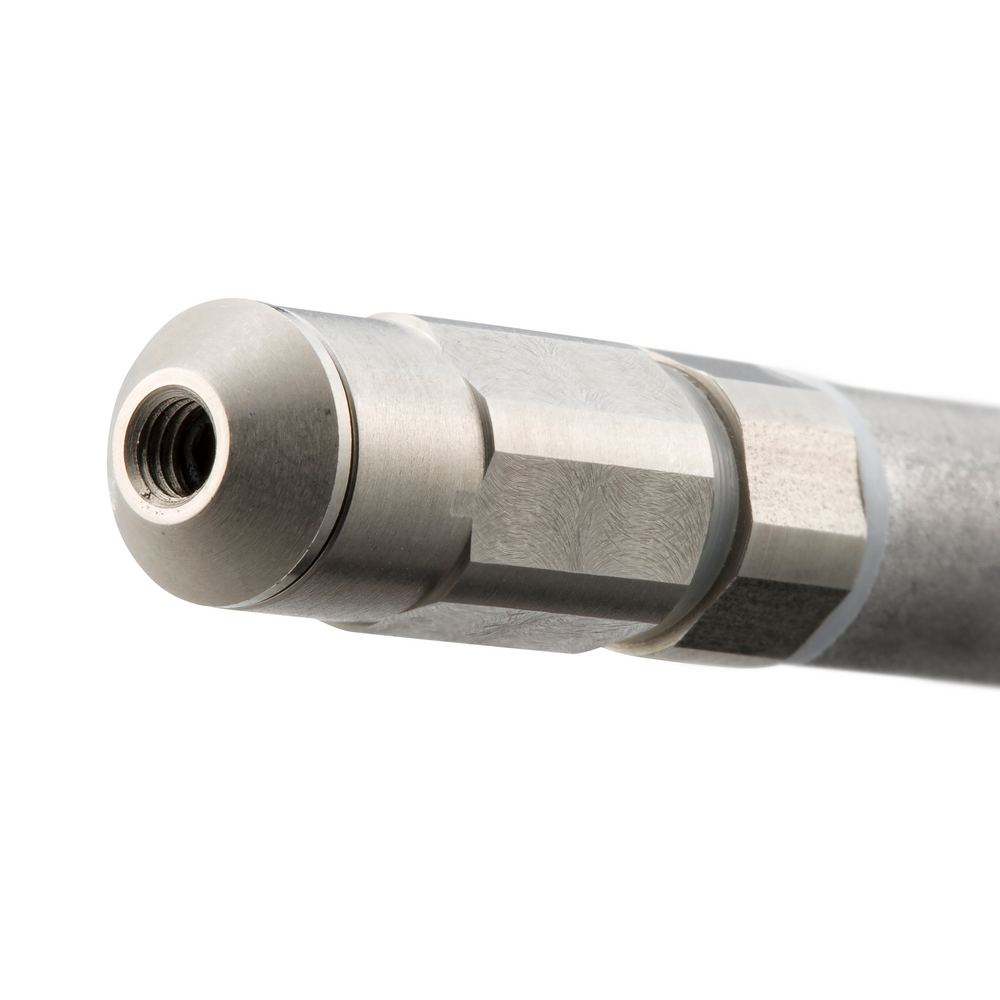

The outer diameter of the tip of the cap and nozzle is Φ10mm.

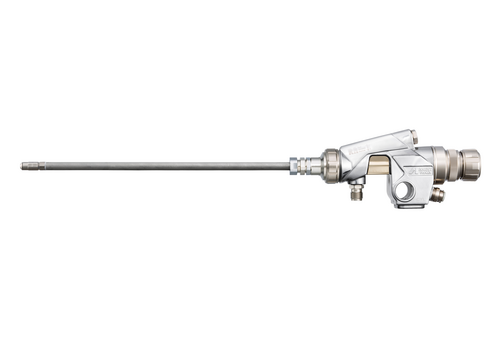

There are four standard angles for 360° spraying: 120°, 135°, 150°, and 180°, and lengths up to 1,600mm.
Ideal for applications where the object cannot be rotated when coating the inner surface of a cylindrical surface.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | Length [mm] | Pattern bending angle [°] | Deflection plate angle [°] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RN1-A-10075-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 75 | -- | 180 |
| RN1-A-10075-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 75 | -- | 135 |
| RN1-A-10075-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 75 | -- | -- |
| RN1-A-10075-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 75 | -- | 120 |
| RN1-A-10100-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | 180 |
| RN1-A-10100-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | 135 |
| RN1-A-10100-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | -- |
| RN1-A-10100-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | 120 |
| RN1-A-10150-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | -- | 180 |
| RN1-A-10150-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | -- | 135 |
| RN1-A-10150-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | -- | -- |
| RN1-A-10150-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | -- | 120 |
| RN1-A-10200-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | 180 |
| RN1-A-10200-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | 135 |
| RN1-A-10200-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | -- |
| RN1-A-10200-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | -- | -- | 120 |
| RN1-A-10250-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | 180 |
| RN1-A-10250-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | 135 |
| RN1-A-10250-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | -- |
| RN1-A-10250-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | 120 |
| RN1-A-10300-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 300 | -- | 180 |
| RN1-A-10300-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 300 | -- | 135 |
| RN1-A-10300-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 300 | -- | -- |
| RN1-A-10300-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 300 | -- | 120 |
| RN1-A-10500-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 500 | -- | 180 |
| RN1-A-10500-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 500 | -- | 135 |
| RN1-A-10500-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 500 | -- | -- |
| RN1-A-10500-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 500 | -- | 120 |
| RN1-A-10750-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 750 | -- | 180 |
| RN1-A-10750-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 750 | -- | 135 |
| RN1-A-10750-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 750 | -- | -- |
| RN1-A-10750-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 750 | -- | 120 |
| RN1-A-1010H-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,000 | -- | 180 |
| RN1-A-1010H-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,000 | -- | 135 |
| RN1-A-1010H-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,000 | -- | -- |
| RN1-A-1010H-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,000 | -- | 120 |
| RN1-A-1012H-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,200 | -- | 180 |
| RN1-A-1012H-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,200 | -- | 135 |
| RN1-A-1012H-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,200 | -- | -- |
| RN1-A-1012H-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,200 | -- | 120 |
| RN1-A-1015H-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,500 | -- | 180 |
| RN1-A-1015H-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,500 | -- | 135 |
| RN1-A-1015H-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,500 | -- | -- |
| RN1-A-1015H-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,500 | -- | 120 |
| RN1-A-1016H-1 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,600 | -- | 180 |
| RN1-A-1016H-2 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,600 | -- | 135 |
| RN1-A-1016H-3 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,600 | -- | -- |
| RN1-A-1016H-4 | Pressure feeding type | 0.8 | 0.10～0.49 | 150 | -- | -- | General purpose | corn | -- | 12 | -- | General-purpose fine particles | round | brass, stainless steel | -- | -- | Φ8 | Φ6 | G1/4B male | -- | 83.0 | 5～40 | 5～43 | 0.70 | -- | -- | 1,600 | -- | 120 |
