Features

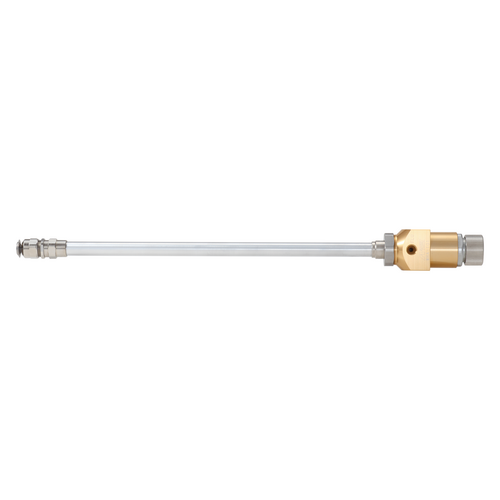

The outer diameter of the tip of the cap and nozzle is Φ20mm.
There are two standard 360° spray angles, 150° and 180°, and lengths up to 500mm.
Ideal for applications where the object cannot be rotated when coating the inner surface of a cylindrical surface.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
Main unit features
・Remote adjustment of pattern width
Since the center air and corner air are each controlled independently, the pattern width can be changed remotely during painting, making it easier to prevent overspray.
- Paint circulation is possible.
Convenient for using paints that tend to settle, such as metallics.
- Compact body
allows installation in a small space, and can be used with painting robots and automatic painting machines.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | Length [mm] | Deflection plate angle [°] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WRA-101-ST4-B1 | Pressure feeding type | 0.70 | -- | -- | -- | -- | General purpose | straight nozzle | 580 | -- | -- | -- | -- | -- | -- | -- | Rc1/8 | -- | Rc1/8 | -- | 78.7 | 5～40 | 5～43 | 0.68 | -- | -- | 297 | 180 |
| WRA-101-ST4-C1 | Pressure feeding type | 0.7 | -- | -- | -- | -- | General purpose | straight nozzle | 460 | -- | -- | -- | -- | -- | -- | -- | Rc1/8 | -- | Rc1/8 | -- | 78.7 | 5～40 | 5～43 | 0.68 | -- | -- | 147 | 180 |
| WRA-101-ST4-A1 | Pressure feeding type | 0.7×12 pieces | -- | -- | -- | -- | General purpose | straight nozzle | 580 | -- | -- | General-purpose fine particles | round | aluminum, stainless steel | Aluminum | -- | Rc1/8 female | Rc1/8 female | Rc1/8 female | -- | 78.7 | 5~40 | 5~43 | 0.68 | -- | -- | 497 | 180 |
