Features

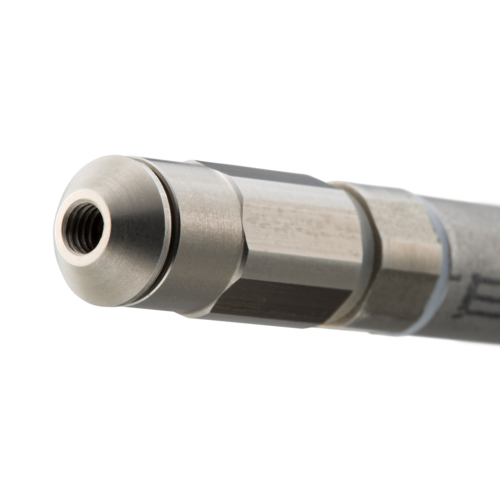

The outer diameter of the tip of the cap and nozzle is Φ10mm.
There are four standard angles for 360° spraying: 120°, 135°, 150°, and 180°, and lengths up to 1,600mm.
Ideal for applications where the object cannot be rotated when coating the inner surface of a cylindrical surface.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
Main unit features
・Ergonomic design with emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | old model | Paint/liquid supply method | spray gun type | Nozzle diameter [mm] | nozzle shape | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure [MPa] | Blow air pressure [MPa] | Air usage [L/min] | Air usage [L/min] | (1) Pattern opening/spraying distance [mm] | air cap format | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Mass [g] | Connection port size Air | Connection diameter Paint | Purpose | paint/liquid | solvent/aqueous | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | Deflection plate angle [°] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RN1-H-1075-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1075-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1075-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1075-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1075-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1075-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1075-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1075-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10075-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10075-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10075-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10075-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10075-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10075-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10075-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10075-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10100-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10100-1P | -- | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7-5.5 | -- | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5~40 | 5～43 | 0.68 | 180 |
| RN1-H-10100-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10100-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10100-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10100-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10100-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10100-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10150-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10150-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10150-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10150-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10150-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10150-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10150-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10150-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10200-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10200-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10200-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10200-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10200-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10200-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10200-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10200-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10250-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10250-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10250-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10250-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10250-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10250-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10250-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10250-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10300-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10300-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10300-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10300-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10300-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10300-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10300-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10300-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10500-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10500-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10500-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10500-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10500-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10500-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10500-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10500-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10750-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10750-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-10750-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10750-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-10750-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10750-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-10750-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-10750-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1010H-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1010H-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1010H-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1010H-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1010H-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1010H-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1010H-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1010H-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1012H-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1012H-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1012H-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1012H-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1012H-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1012H-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1012H-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1012H-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1015H-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1015H-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1015H-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1015H-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1015H-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1015H-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1015H-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1015H-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1016H-1 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1016H-1P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 180 |
| RN1-H-1016H-2 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1016H-2P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 150 |
| RN1-H-1016H-3 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1016H-3P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 135 |
| RN1-H-1016H-4 | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
| RN1-H-1016H-4P | W-101-S3-A1 | Pressure feeding type | General purpose | 0.8 | corn | 20 | 0.1～0.49 | 0.1～0.49 | 270 | 270 | -- | -- | -- | round | brass, stainless steel | 3.7~5.5 | 295 | G1/4B male | G1/4 female | -- | paint | solvent | 71.3 | 5～40 | 5～43 | 0.68 | 120 |
