Features
There are two standard nozzle diameters available: 0.5mm and 0.6mm. Neck length can be customized.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | Length [mm] | Pattern bending angle [°] | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

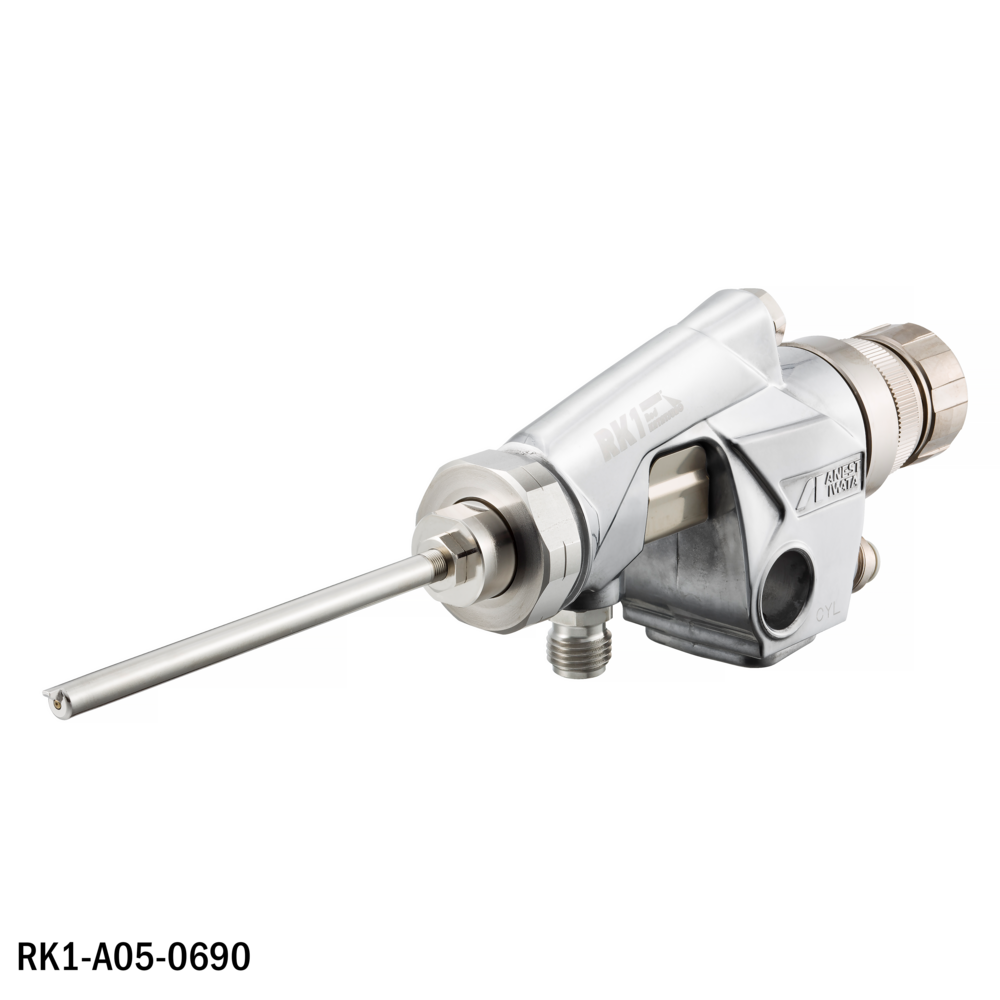

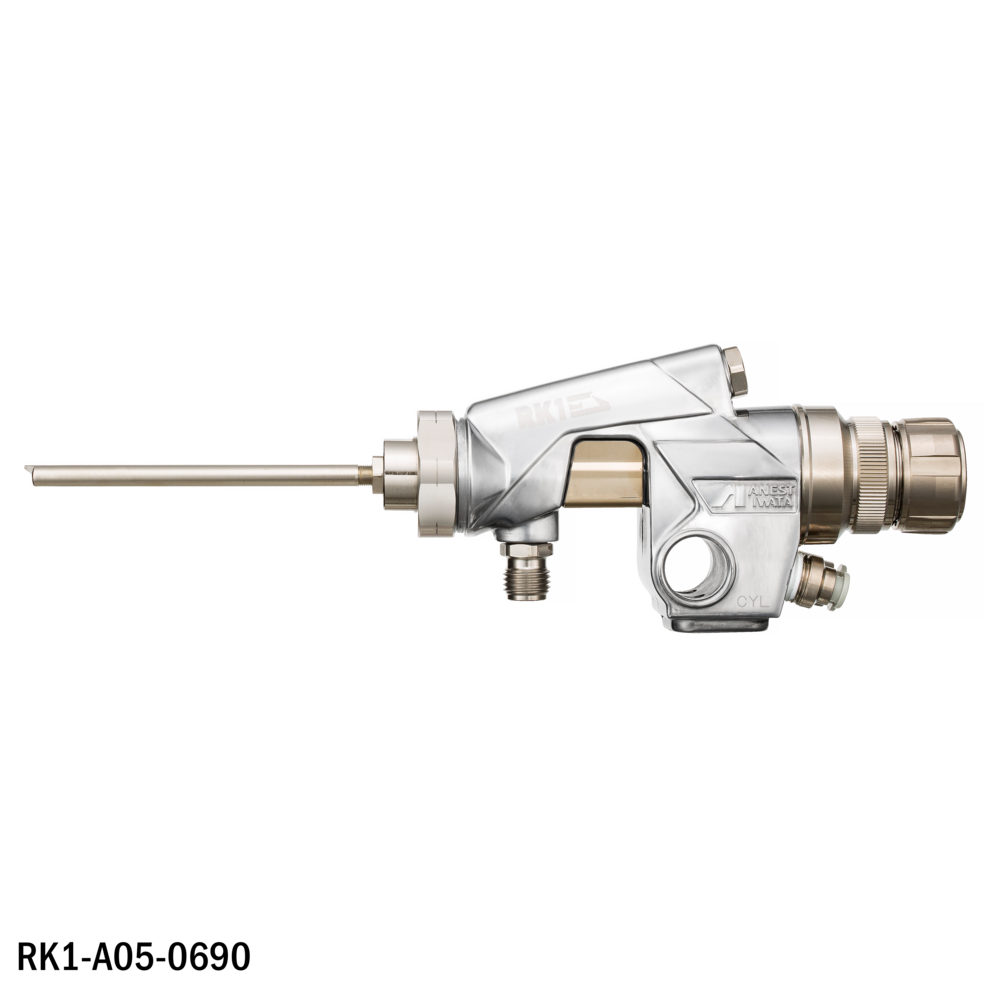

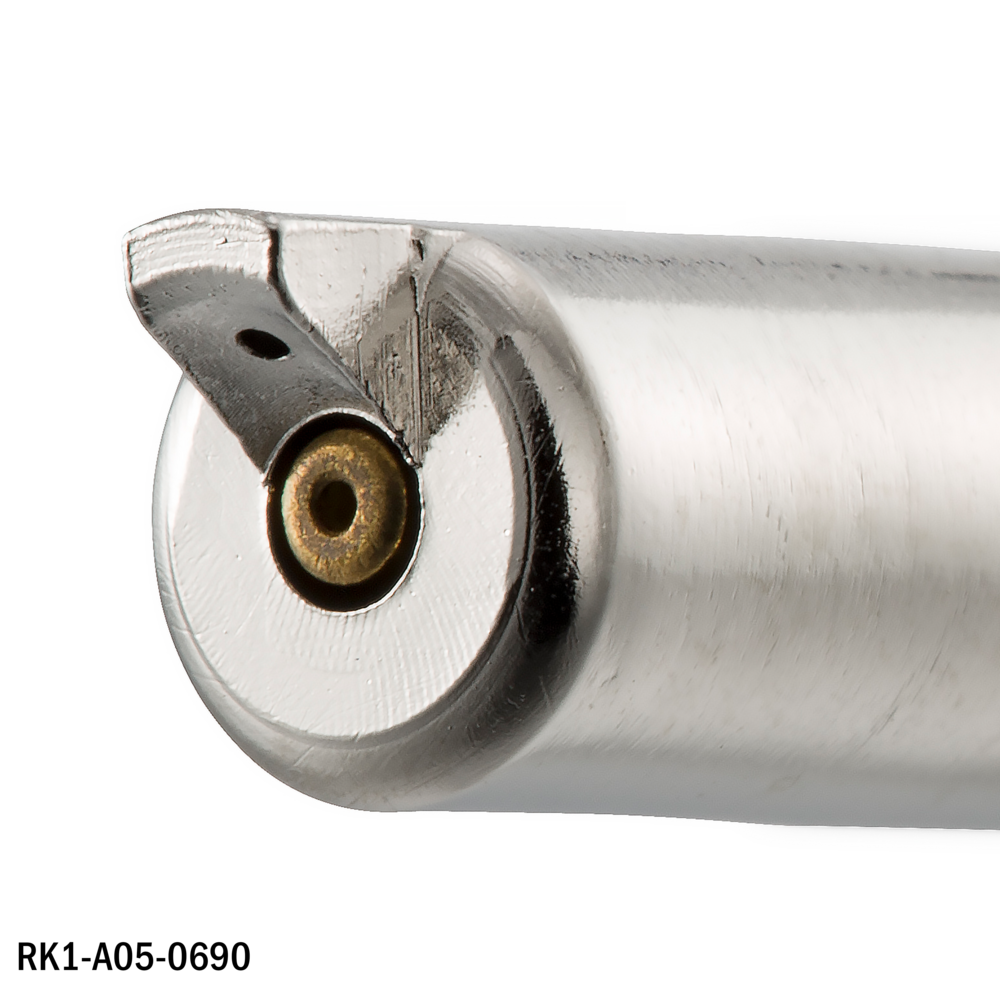

| RK1-A05-0690 | Pressure feeding type | 0.5 | 0.29 | Four | 32/200 | 35 | General purpose | straight nozzle | -- | 455 | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 90 | -- | -- |
| RK1-A05-06150 | Pressure feeding type | 0.5 | 0.29 | Four | 32/200 | 35 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | -- | -- |
| RK1-A05-06250 | Pressure feeding type | 0.5 | 0.29 | Four | 32/200 | 35 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | -- |
| RK1-A05-06350 | Pressure feeding type | 0.5 | 0.29 | Four | 32/200 | 35 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 350 | -- | -- |

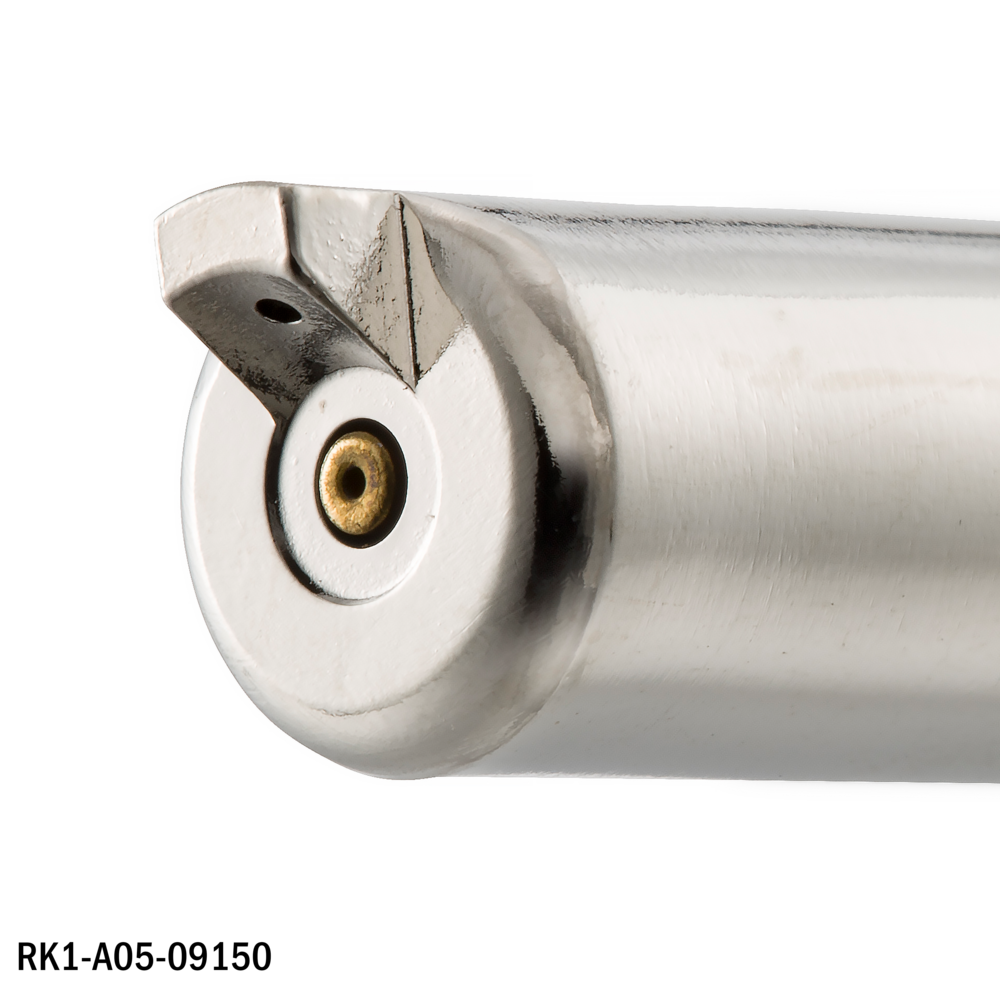

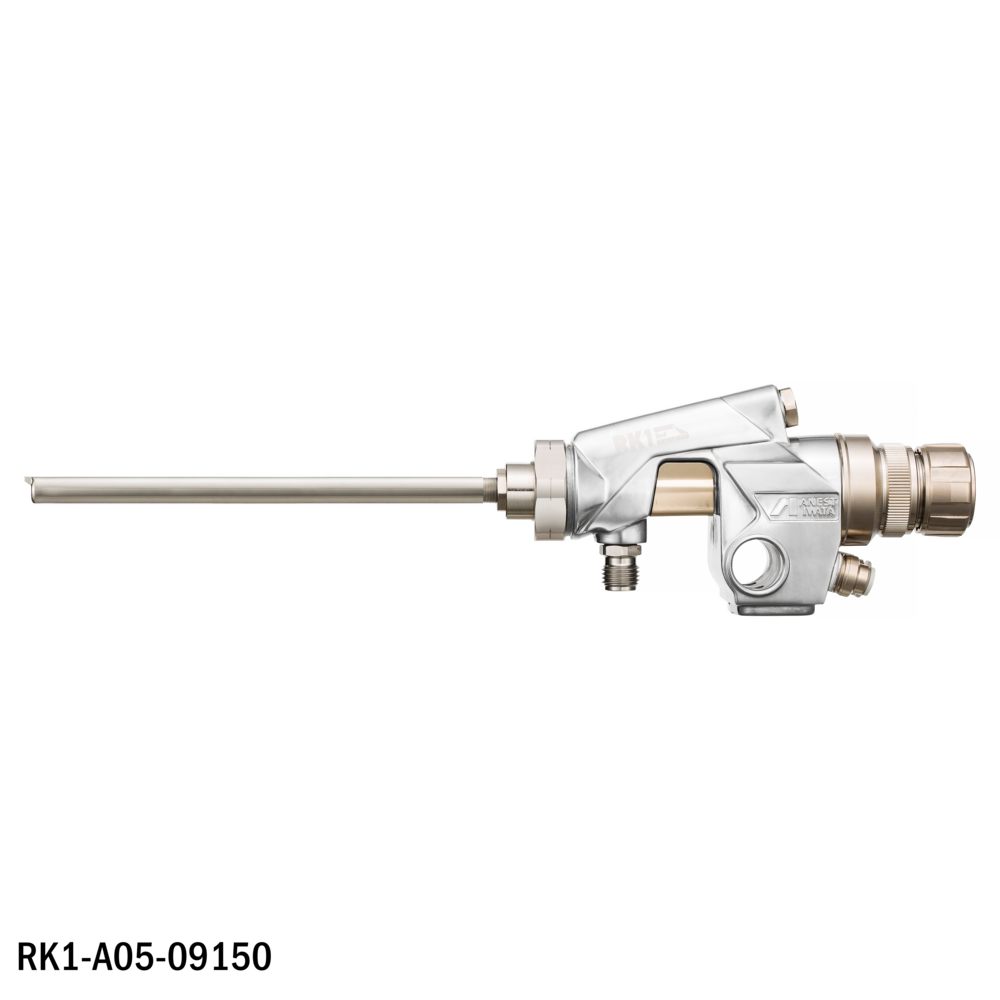

| RK1-A05-09150 | Pressure feeding type | 0.5 | 0.29 | 9 | 36/200 | 55 | General purpose | straight nozzle | -- | 490 | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 150 | -- | -- |
| RK1-A05-09250 | Pressure feeding type | 0.5 | 0.29 | 9 | 36/200 | 55 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | -- |
| RK1-A05-09350 | Pressure feeding type | 0.5 | 0.29 | 9 | 36/200 | 55 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 350 | -- | -- |
| RK1-A06-12180 | Pressure feeding type | 0.6 | 0.29 | 17 | 48/200 | 73 | General purpose | straight nozzle | -- | 535 | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 180 | -- | -- |
| RK1-A06-12250 | Pressure feeding type | 0.6 | 0.29 | 17 | 48/200 | 73 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 250 | -- | -- |
| RK1-A06-12350 | Pressure feeding type | 0.6 | 0.29 | 17 | 48/200 | 73 | General purpose | straight nozzle | -- | -- | 12 | -- | General-purpose fine particles | For round blowing only | -- | -- | -- | Φ8 | -- | Φ6 | G1/4B male | -- | 66.8 | 5～40 | 5～43 | 0.70 | -- | -- | 350 | -- | -- |
