Features

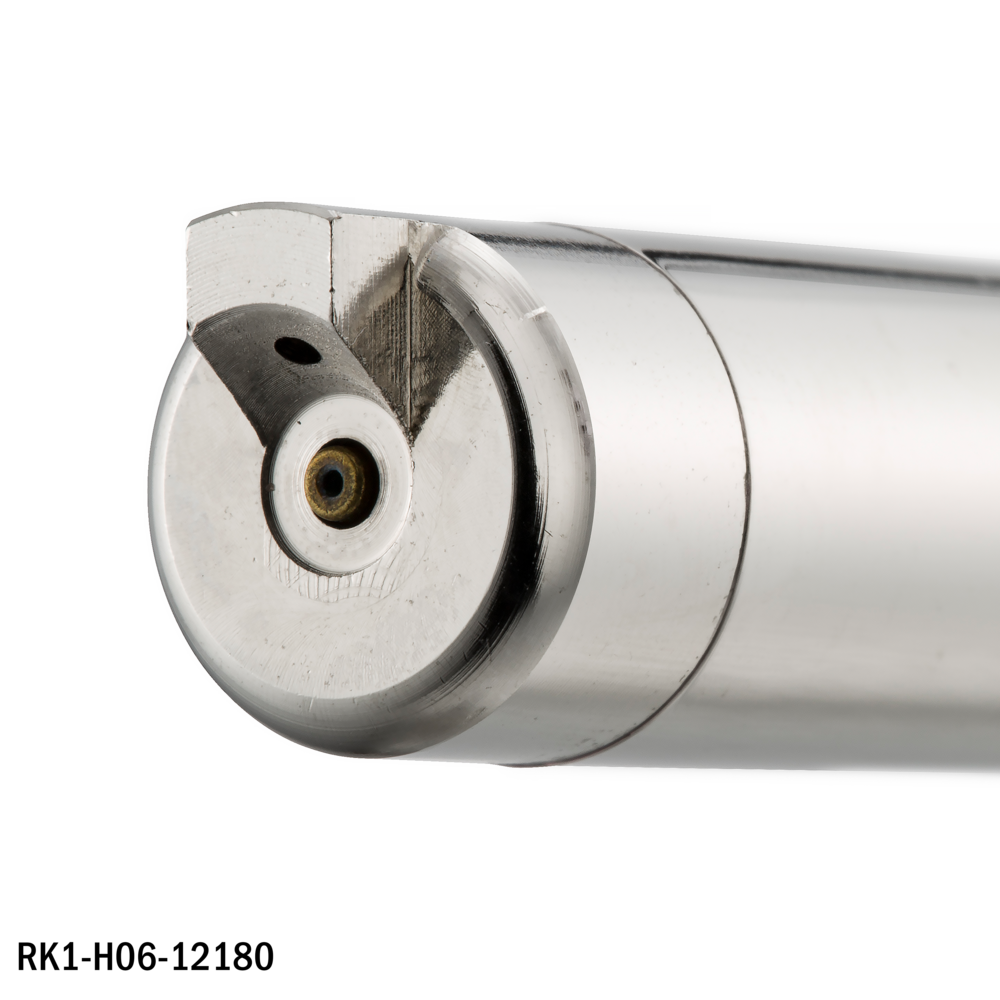

This spray gun has a corner on only one side of the spray gun cap, making it possible to apply to the inner surface of a cylindrical surface.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
Main unit features
・Ergonomic design with emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | old model | Paint/liquid supply method | spray gun type | Nozzle diameter [mm] | nozzle shape | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure [MPa] | Blow air pressure [MPa] | Air usage [L/min] | Air usage [L/min] | (1) Pattern opening/spraying distance [mm] | spray pattern | Wetted parts material | Required compressor [kW] | Mass [g] | Connection port size Air | Connection diameter Paint | Purpose | paint/liquid | solvent/aqueous | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

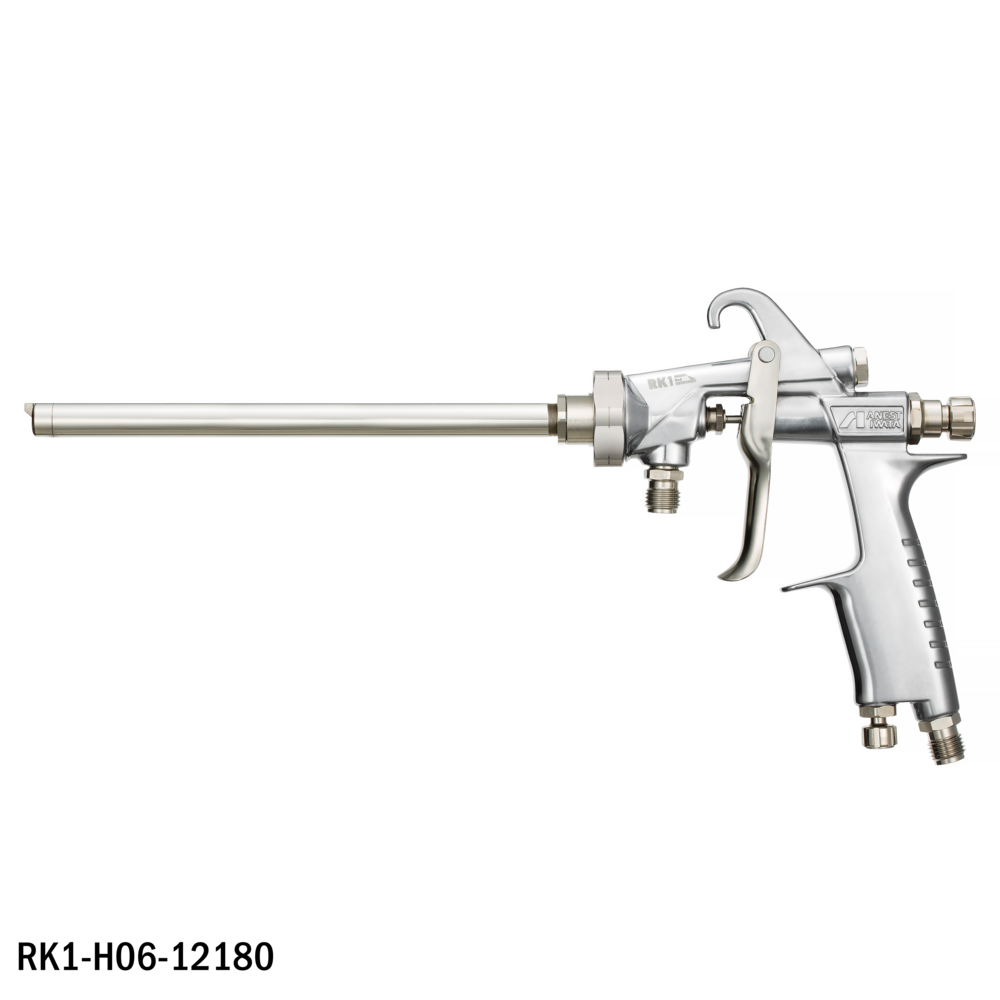

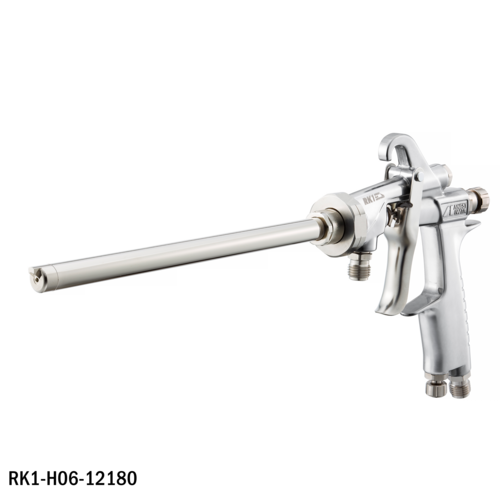

| RK1-H06-12180 | W-101-S13 | Pressure feeding type (gravity type) | General purpose | 0.6 | straight nozzle | 20 | 0.29 | 0.29 | 73 | 73 | 48/200 | For round blowing only | brass, stainless steel | 0.4~0.75 | 450 | G1/4B male | G1/4 female | For applying mold release agents and functional agents to the inner surface of pipes. | paint | solvent | 66.8 | 5～40 | 5～43 | 0.68 |
