Purpose

The basic atomization mechanism is the same as an airless spray gun, so there is less paint splashing and scattering compared to air spray guns, which improves the painting environment by reducing the amount of paint used and reducing dirt on workers and the painting room.
Sufficient atomization can be achieved even with highly viscous paints. The thick film provides a beautiful skin surface.


specification

formatMaximum usable paint pressure [MPa]Commonly used paint pressure [MPa]Piston operating air pressure [Mpa]Maximum blowing air pressure [MPa]Regular blowing air pressure [MPa]Hose mounting screw diameter/paint/airAttached nozzle tipFiltration mesh sizeMass [g]

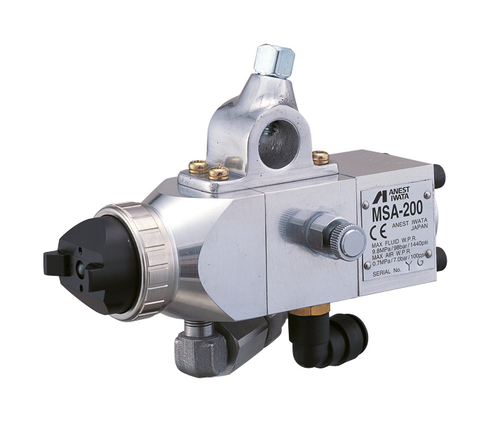

MSA-200 9.8 4.9 -- - 0.15 G1/4B male NT-2004CMU #200 mesh 680
