Features

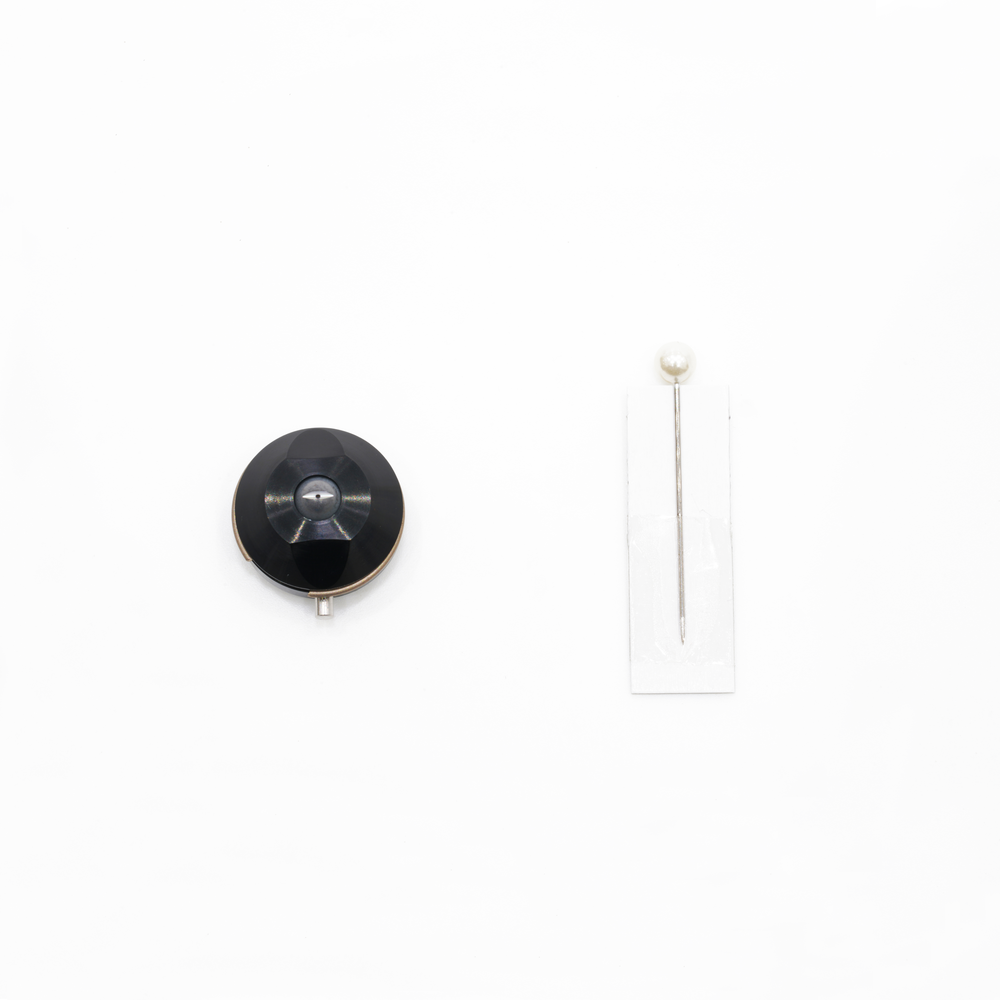

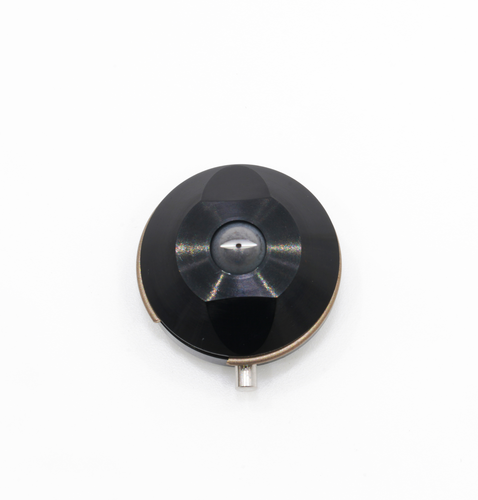

Please select the nozzle tip that suits your use based on the pattern width and paint spray amount.
The paint ejection amount and pattern width in the specification table are based on the paint used: melamine paint NK-2 for 20 seconds, paint pressure: 4.9MPa, spray distance: 200mm flat spray.

specification

formatPaint discharge amount [mL/sec]Paint discharge amount [L/min]Pattern width [cm]Applicable model
NT-1502CMU 3.0 0.18 13～18 MSG-200/MSA-200
NT-1503CMU 3.0 0.18 13～18 MSG-200/MSA-200
NT-2002CMU 4.0 0.24 18～23 MSG-200/MSA-200
NT-2003CMU 6.0 0.36 18～23 MSG-200/MSA-200
NT-2004CMU 8.0 0.48 18～23 MSG-200/MSA-200
NT-2005CMU 10.0 0.60 18～23 MSG-200/MSA-200
NT-2503CMU 7.5 0.45 23～28 MSG-200/MSA-200
NT-2504CMU 10.0 0.60 23～28 MSG-200/MSA-200
NT-2505CMU 12.5 0.75 23～28 MSG-200/MSA-200
NT-3003CMU 9.0 0.54 28～33 MSG-200/MSA-200
NT-3004CMU 12.0 0.72 28～33 MSG-200/MSA-200
NT-3005CMU 15.0 0.90 28～33 MSG-200/MSA-200
NT-3006CMU 18.0 1.08 28～33 MSG-200/MSA-200
NT-3503CMU 10.5 0.63 33～38 MSG-200/MSA-200
NT-3504CMU 14.0 0.84 33～38 MSG-200/MSA-200
NT-3505CMU 17.5 1.05 33～38 MSG-200/MSA-200
NT-3506CMU 21.0 1.26 33～38 MSG-200/MSA-200
