Applications and features

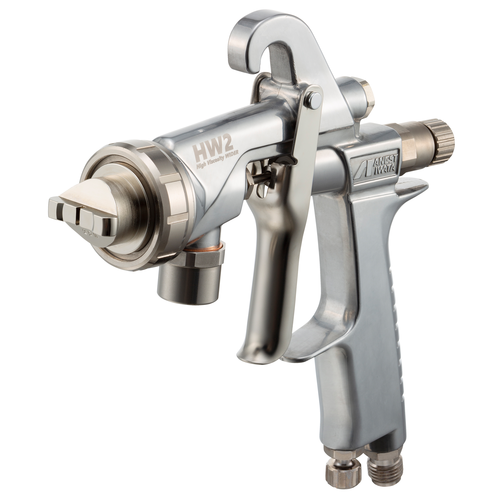

This is a spray gun that can apply viscous liquid materials that are difficult to apply with general-purpose spray guns by pushing them out using a simple pressure-feeding method. Particularly suitable for architectural exteriors/interiors, multicolored spray painting, and gel coat applications.
Main unit features
・Ergonomic design with emphasis on functionality
・Simple maintenance
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Connection port size Air | Connection diameter Paint | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HW-2001-25 | Container pressure feeding type | 2.5 | 0.29 | -- | 25W:390(10W:160)/200 | 170 | General purpose | straight nozzle | 25W/10W | -- | 410 | 40 | General-purpose fine particles | For Hirabuki only | brass, stainless steel | 2.2～3.7 | G1/4B male | M16 female | -- | 78.3 | 5～40 | 5～43 | 0.49 | Brush, air cap (10W), hose joint, spanner, needle valve spring holder | -- | -- |
| HW-2001-30 | Container pressure feeding type | 3.0 | 0.29 | -- | 25W:390(10W:160)/200 | 170 | General purpose | straight nozzle | 25W/10W | -- | 410 | 40 | General-purpose fine particles | For Hirabuki only | brass, stainless steel | 2.2～3.7 | G1/4B male | M16 female | -- | 78.3 | 5～40 | 5～43 | 0.49 | Brush, air cap (10W), hose joint, spanner, needle valve spring holder | -- | -- |
| HW-2001-25PC | Container pressure feeding type | 2.5 | 0.29 | -- | 25W:390(10W:160)/200 | 170 | General purpose | straight nozzle | 25W/10W | -- | 410 | 40 | General-purpose fine particles | For Hirabuki only | brass, stainless steel | 3.7~5.5 | G1/4B male | M16 female | -- | 78.3 | 5～40 | 5～43 | 0.49 | Brush, air cap (10W), hose fitting, spanner, needle valve spring holder, PC-19B | -- | -- |
| HW-2001-30PC | Container pressure feeding type | 3.0 | 0.29 | -- | 25W:390(10W:160)/200 | 170 | General purpose | straight nozzle | 25W/10W | -- | 410 | 40 | General-purpose fine particles | For Hirabuki only | brass, stainless steel | 3.7~5.5 | G1/4B male | M16 female | -- | 78.3 | 5～40 | 5～43 | 0.49 | Brush, air cap (10W), hose fitting, spanner, needle valve spring holder, PC-19B | -- | -- |
