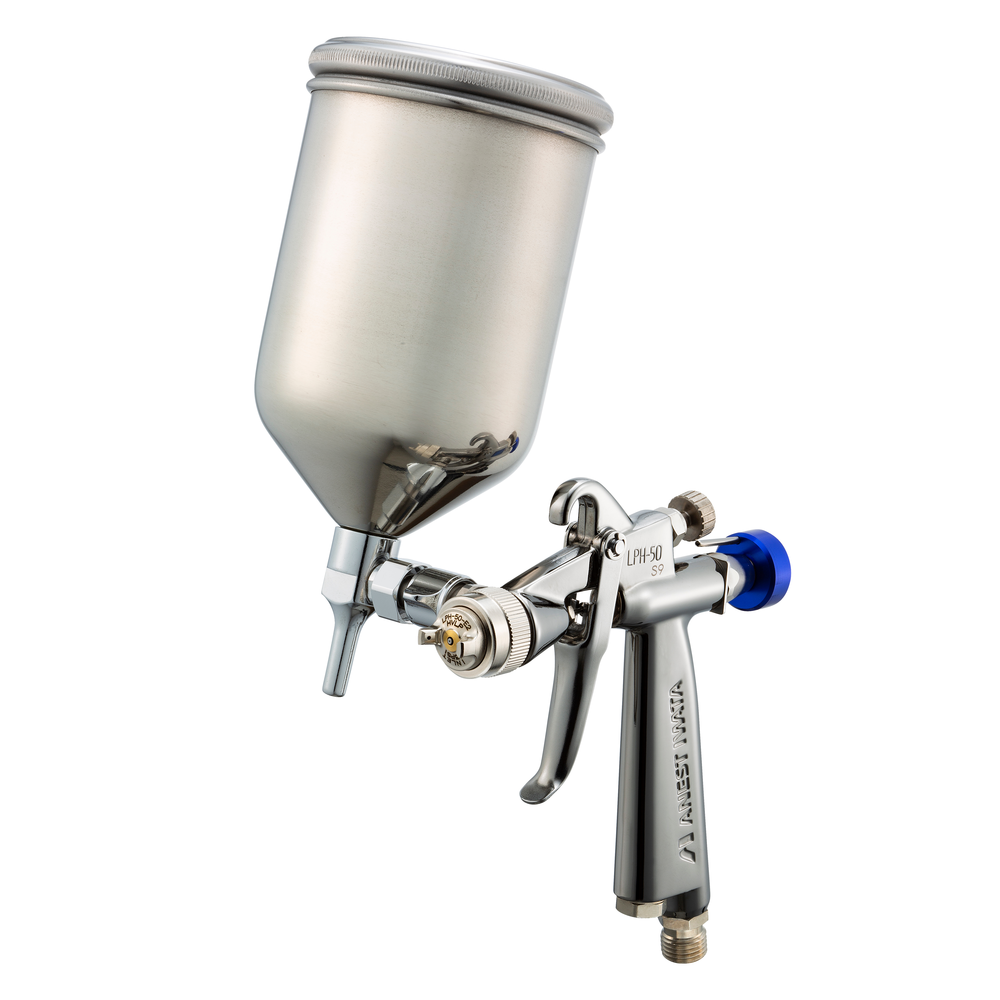

What is a photocatalyst spray gun?

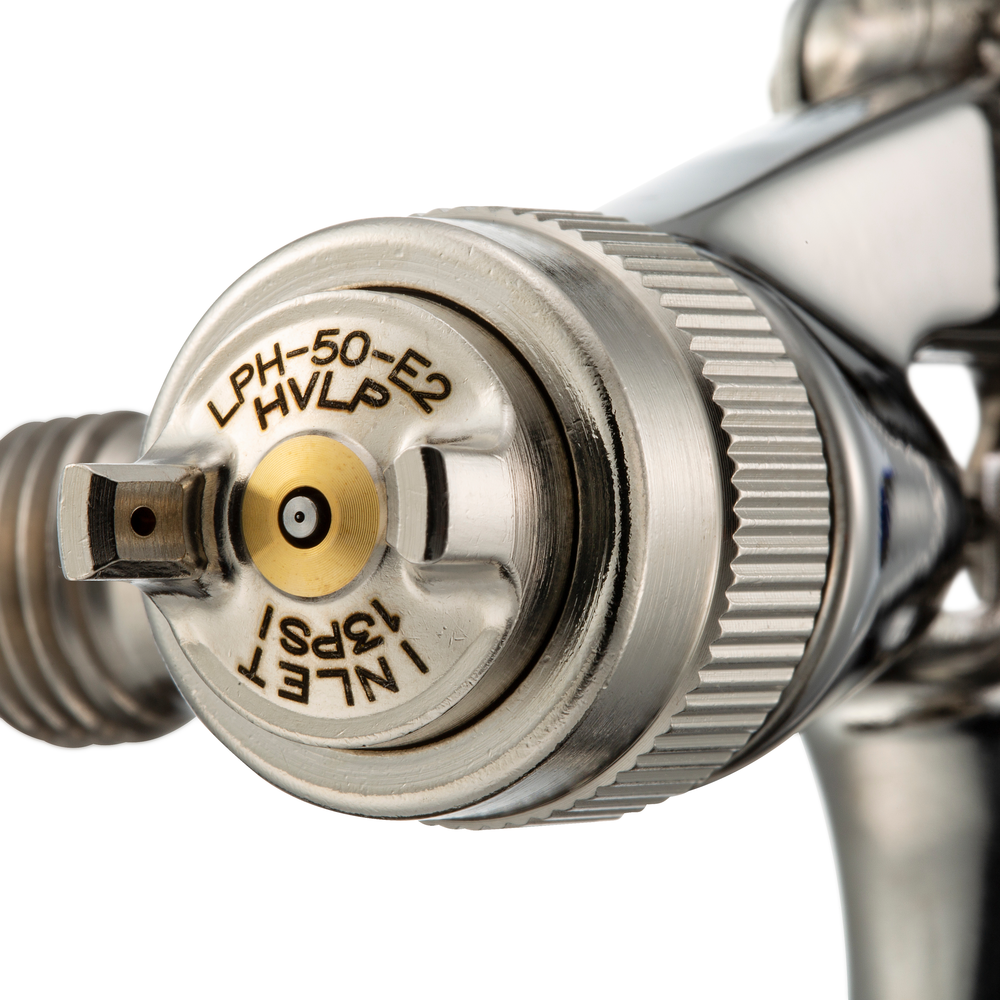

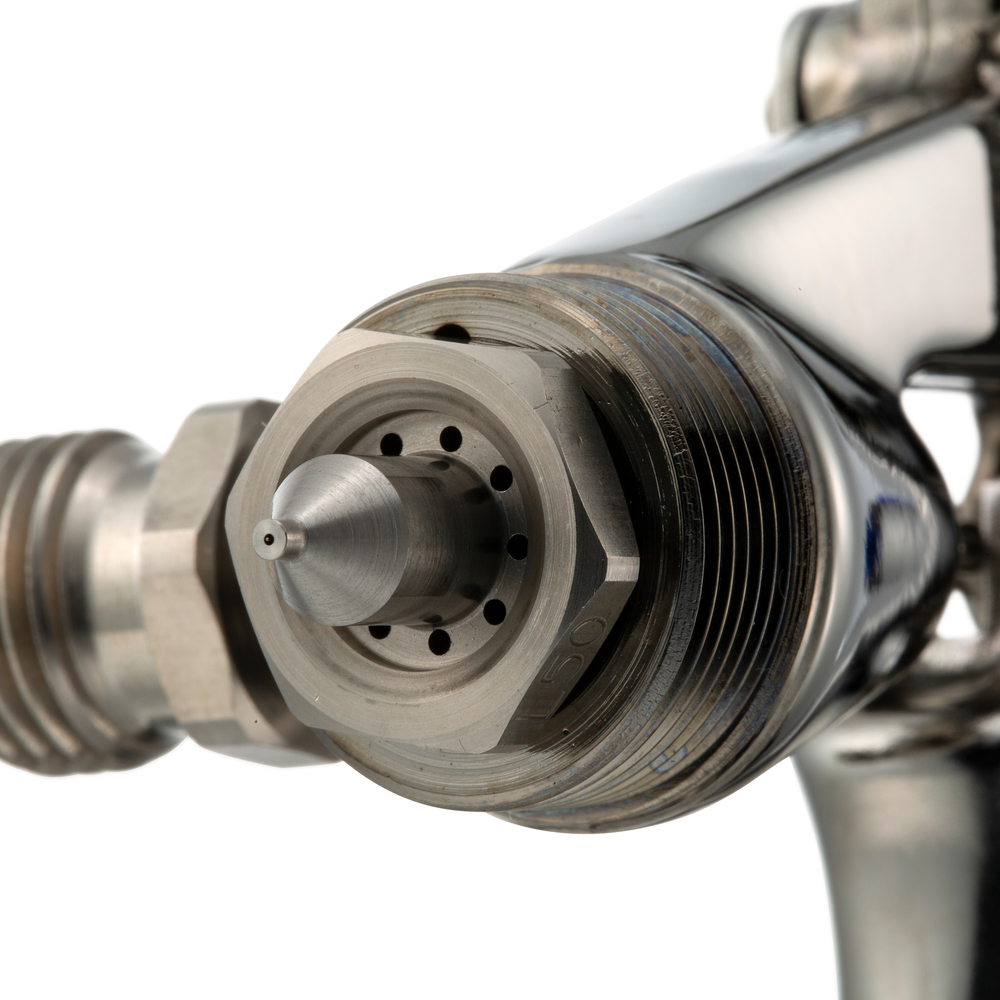

This is a special spray gun specialized for spraying photocatalyst liquid. It combines a nozzle and cap that can achieve high atomization with a small amount of air, and also uses a special paint adjustment knob that allows you to adjust the discharge amount with one touch. It is designed to be easy to use even for beginners.
Features

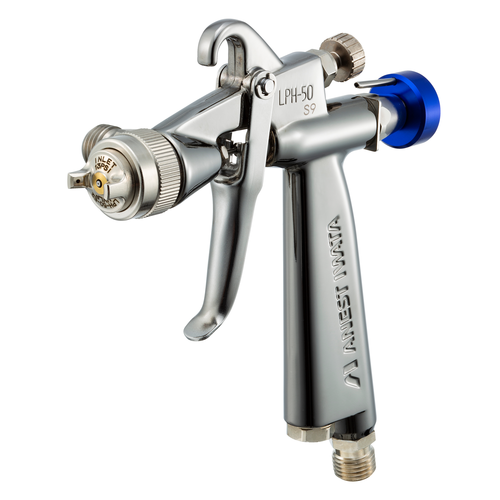

Since it is an ultra-compact spray gun, it is easy to handle and can be used for long periods of time with less fatigue. We have a lineup of four models with diameters of Φ0.4mm, Φ0.6mm, and Φ1.0mm. (Two models with a diameter of 1.0 mm are available, a standard pattern type and a wide pattern type.)
◆Paint supply method: Gravity type (can also be used for suction)
★Photocatalyst spray gun, container cup, and handheld We have also started selling pressure gauge photocatalyst kits.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Connection port size Air | Connection diameter Paint | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LPH-50-S9-04 | gravity type | 0.4 | 0.19 | 15 | 100 | 50 | General purpose | straight nozzle | E2 | -- | 200 | 12 | Highly fine particles | Round to flat blowing | stainless | 0.75~1.5 | G1/4B male | G3/8 male | -- | 57 | 5～40 | 5～43 | 0.68 | brush | -- | -- |
| LPH-50-S9-06 | gravity type | 0.6 | 0.19 | twenty two | 100 | 50 | General purpose | straight nozzle | E2 | -- | 200 | 12 | Highly fine particles | Round to flat blowing | stainless | 0.75~1.5 | G1/4B male | G3/8 male | -- | 57 | 5～40 | 5～43 | 0.68 | brush | -- | -- |
| LPH-50-S9-10 | gravity type | 1.0 | 0.19 | 35 | 100 | 50 | General purpose | straight nozzle | E2 | -- | 200 | 12 | Highly fine particles | Round to flat blowing | stainless | 0.75~1.5 | G1/4B male | G3/8 male | -- | 57 | 5～40 | 5～43 | 0.68 | brush | -- | -- |
