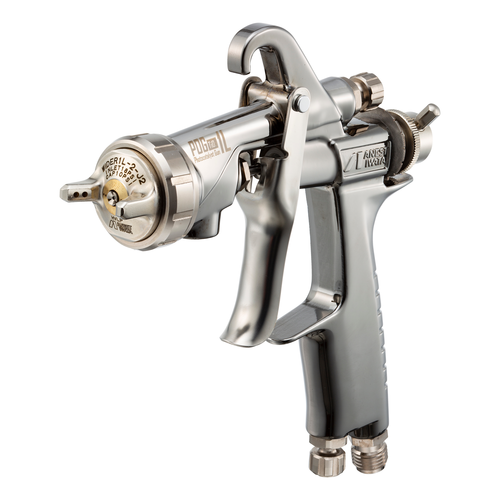

What is a photocatalyst spray gun?

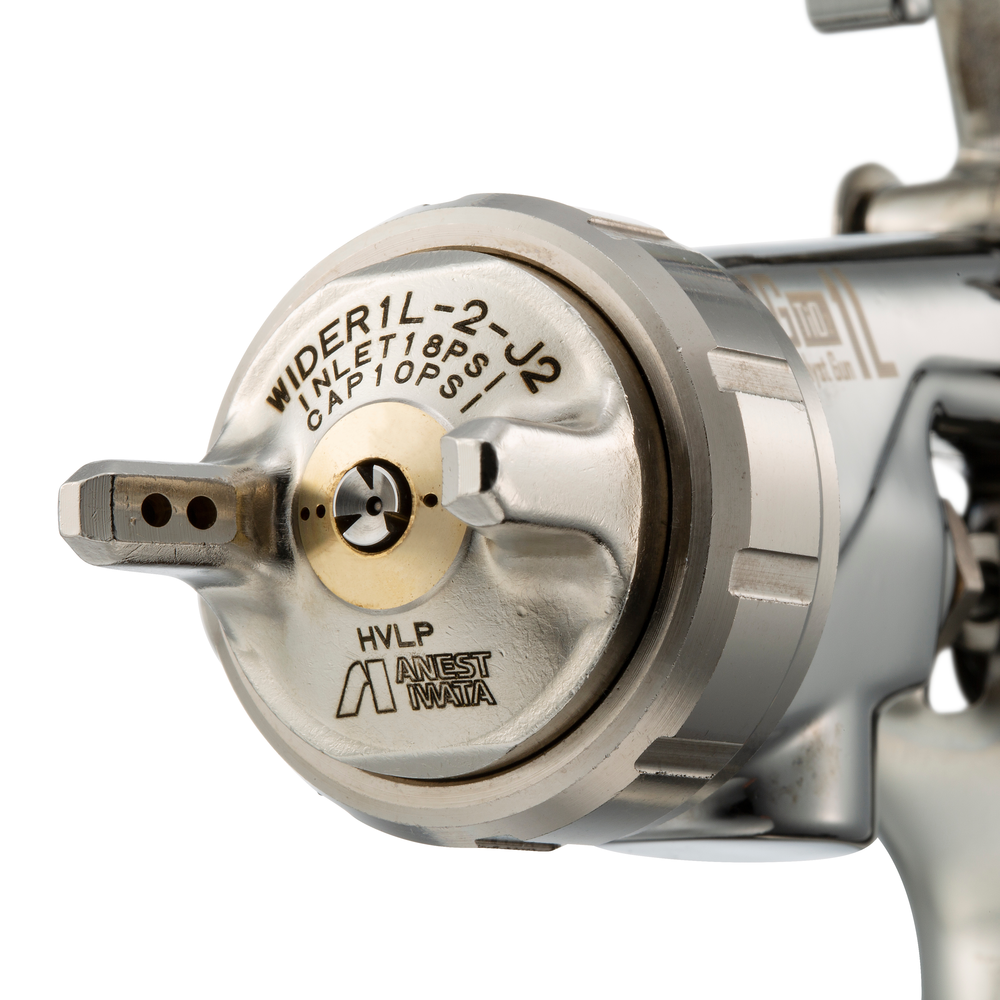

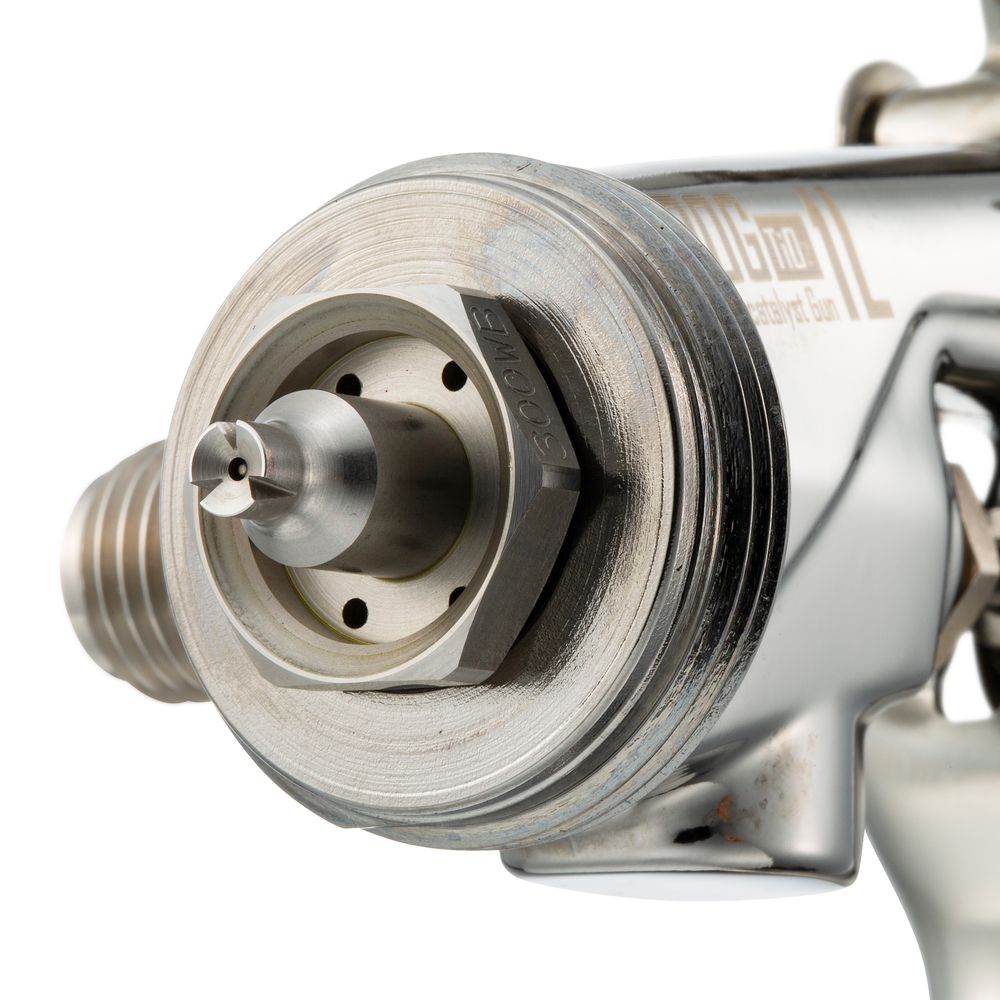

This is a special spray gun specialized for spraying photocatalyst liquid. It combines a nozzle and cap that can achieve high atomization with a small amount of air, and also uses a special paint adjustment knob that allows you to adjust the discharge amount with one touch. It is designed to be easy to use even for beginners.
Features
Since the body size is one size larger than the LPH-50-S9 series, it is a model specialized for even higher atomization. The pattern width is also wide, allowing for efficient application over large areas.
◆Paint supply method: Gravity type (can also be used for suction)
Main unit features
・Ergonomic design with emphasis on functionality
・Simple maintenance
・Pattern adjustment device that responds linearly
・Equipped with a new air valve seat set (structure that minimizes individual differences between spray guns)
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Cap internal pressure [MPa] | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Required compressor [kW] | Connection port size Air | Connection diameter Paint | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | old model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POG1L-H05-S32 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| POG1L-H10-S30 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| POG1L-H10-S33 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| POG1L-H05-S25 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| POG1L-H10-S18 | gravity type | 1.0 | 0.15～0.20 | -- | -- | 270 | General purpose | straight nozzle | WIDER1L-2-J2 | -- | 290 | -- | Highly fine particles | Round to flat blowing | stainless | 3.7~5.5 | G1/4B male | G1/4B male | -- | 79 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
| POG1L-H10-S19 | gravity type | 1.0 | 0.15~0.20 | -- | -- | 340 | General purpose | straight nozzle | WIDER1L-2-J2 | -- | 340 | -- | Highly fine particles | Round to flat blowing | stainless | 3.7~5.5 | G1/4B male | G1/4B male | -- | 79 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
| POG1L-H05-S23 | gravity type | 0.5 | 0.15～0.20 | -- | -- | 340 | General purpose | straight nozzle | WIDER1L-2-J2 | -- | 340 | -- | Highly fine particles | Round to flat blowing | stainless | 3.7~5.5 | G1/4B male | G1/4B male | -- | 79 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
| POG1L-H08-S27 | gravity type | 0.8 | 0.15～0.20 | -- | -- | 340 | General purpose | straight nozzle | WIDER1L-2-J2 | -- | 340 | -- | Highly fine particles | Round to flat blowing | stainless | 3.7~5.5 | G1/4B male | G1/4B male | -- | 79 | 5～40 | 5～43 | 0.70 | brush | -- | -- |
