Purpose

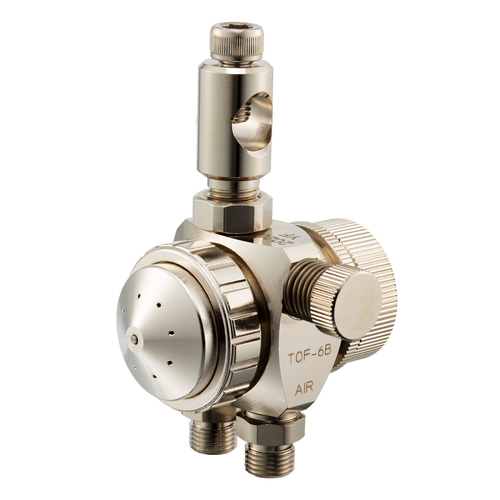

A simple type air guard spray gun.
Since the center air and air guard air are in the same circuit, it is difficult to make detailed settings, but the price is affordable.
Nozzle diameter: 0.5mm
Features

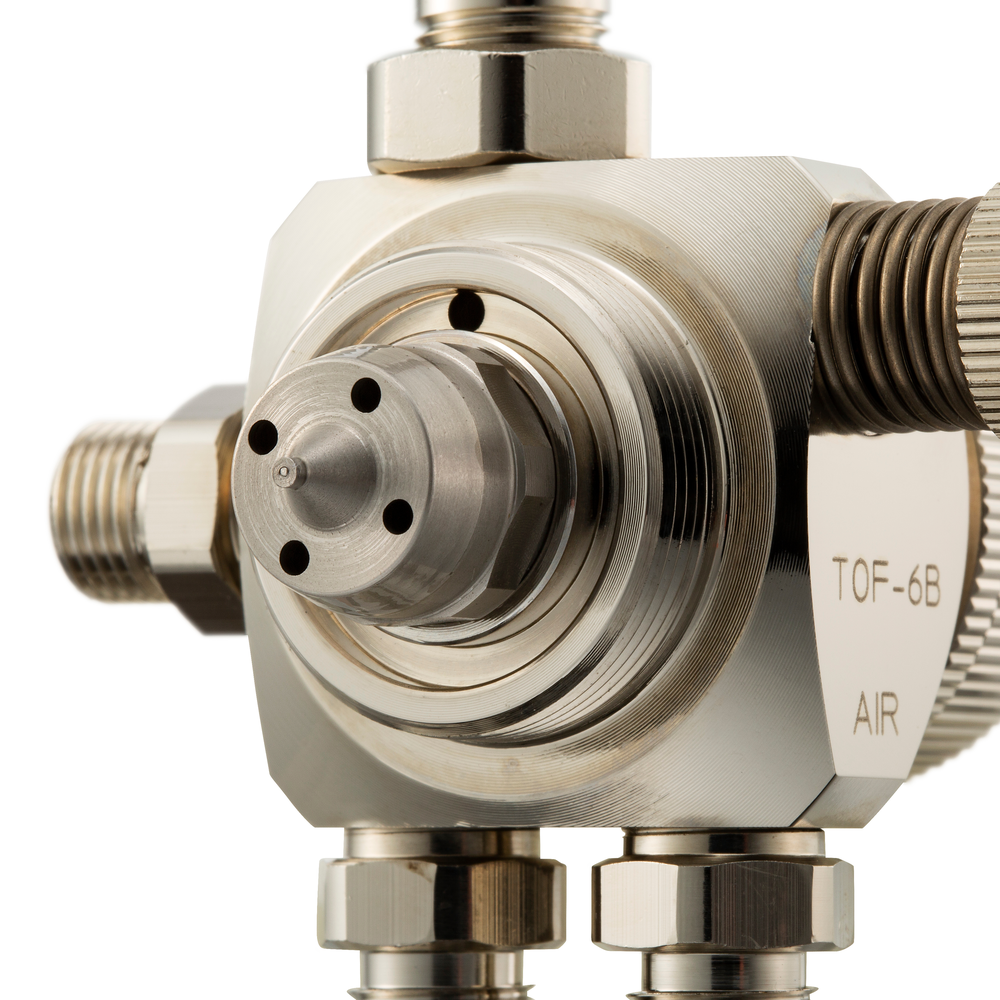

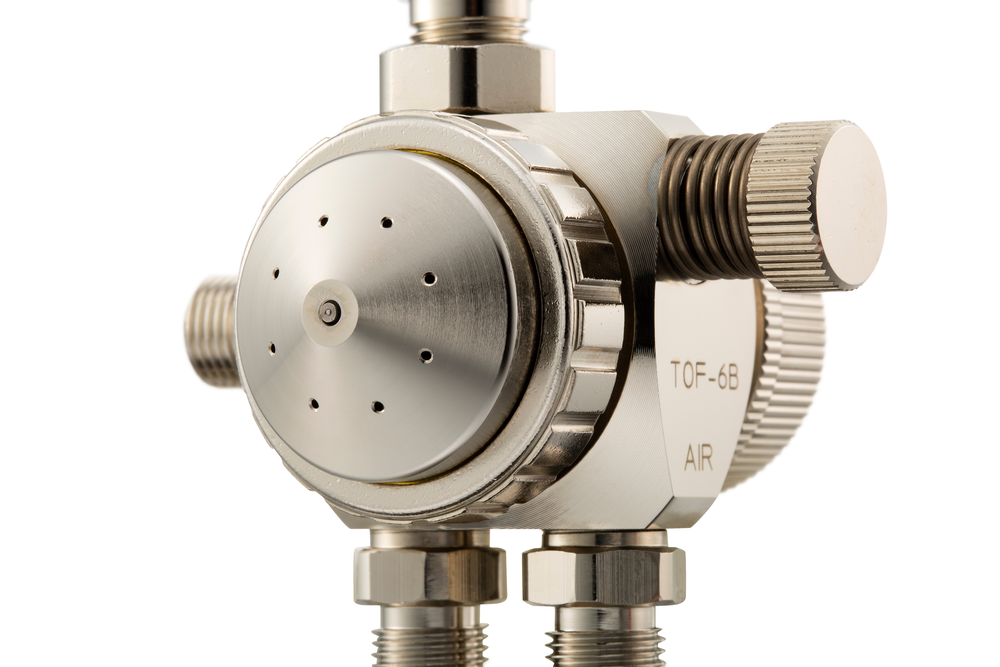

By creating multiple holes on the outside of the air cap and releasing air through them (air guard), scattering is greatly reduced.
This spray gun is designed for round spraying, making it suitable for pinpoint application.
It is particularly effective when applied to flat surfaces.
◆Liquids used: Vulcanized adhesives, paints, rust preventives, functional agents, etc.
◆Viscosity range used: 40 seconds/within NK-2.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOF-6RB-S2 | Pressure feeding type (gravity type) | 0.5 | 60 | 70/300 | 50 | General purpose | straight nozzle | 350 | -- | General-purpose fine particles | Round to flat blowing | brass, stainless steel | Brass | -- | G1/8B male | G1/8B male | G1/8B male | G1/8B male | Small item application | 69.4 | 5~40 | 5~43 | 0.68 | -- | -- |
