Features

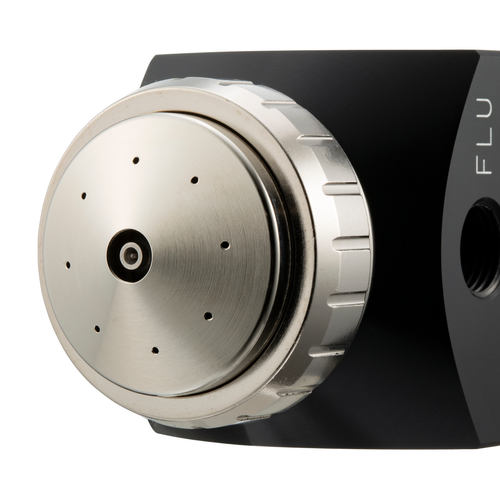

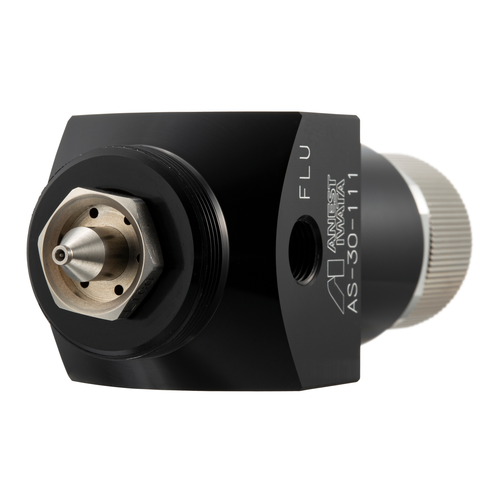

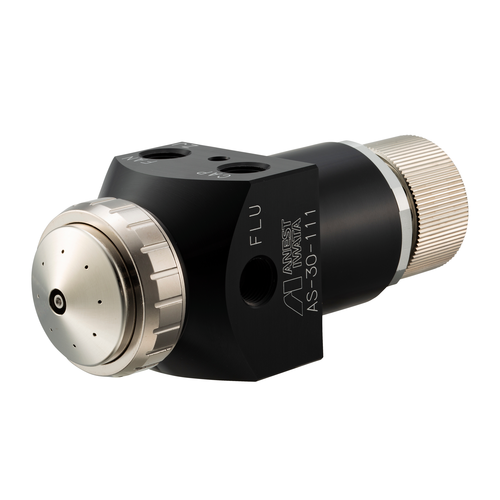

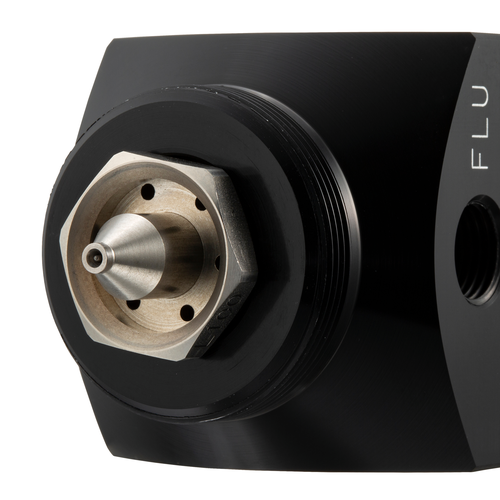

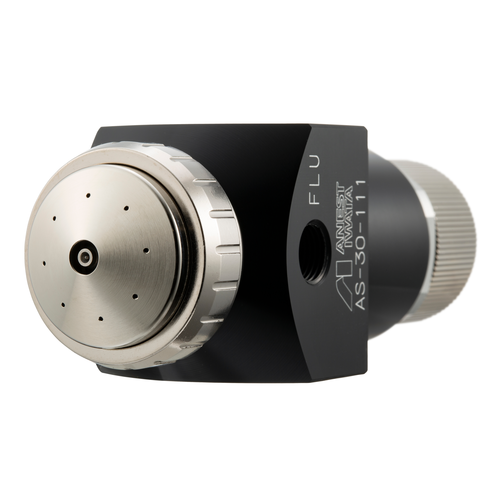

TOF-6RB-S2 high-performance spray gun.
Spray air and guard air can be controlled independently, making it easy to set optimal settings for various situations.
Nozzle diameter: 0.8mm
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-30-111 | Pressure feeding type | 0.8 | 0.26 | -- | -- | 350 | General purpose | straight nozzle | 350 | -- | 0.22 | General-purpose fine particles | For round blowing only | aluminum, stainless steel | Aluminum | -- | Rc1/8 female | Rc1/8 female | Rc1/8 female | Rc1/8 female | Small item application | 78.7 | 5~40 | 5～43 | 0.68 | -- | -- |
