Features

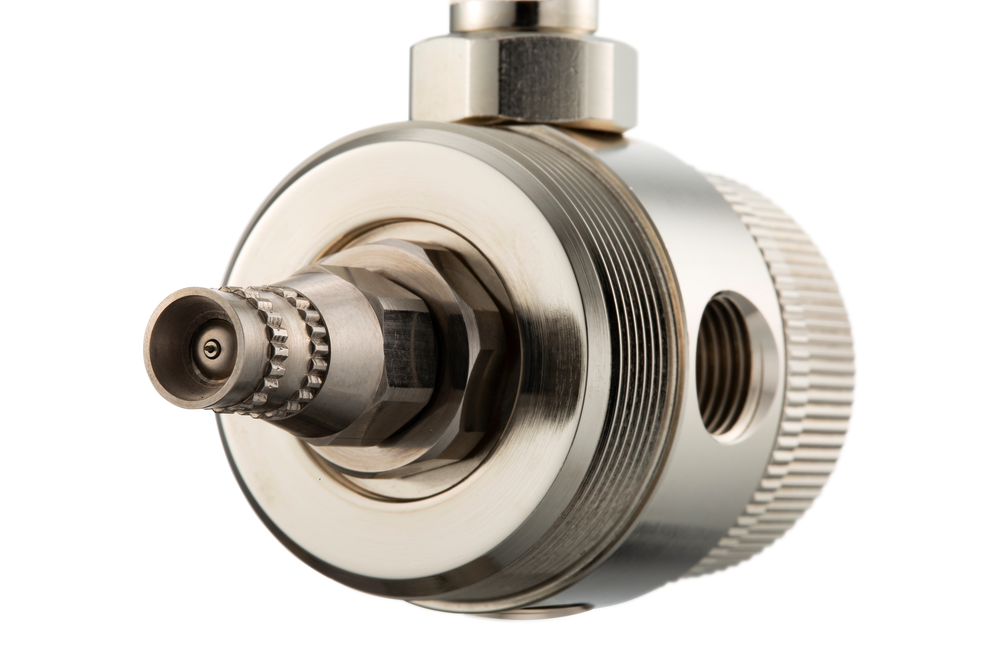

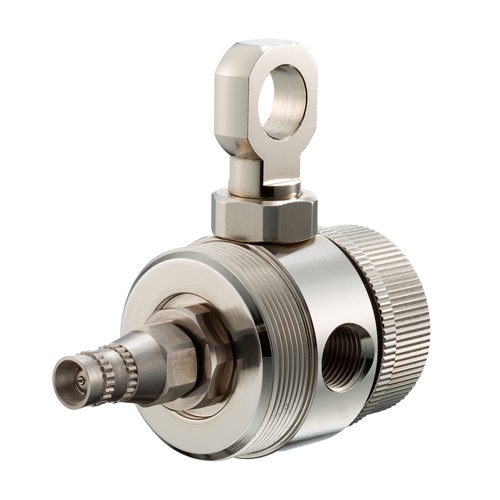

This is a round type spray gun with an airbrush atomizing head at the tip.
Proximity application Since it is possible to apply closer to each other than a spray gun, it is possible to draw lines several millimeters wide.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 10 seconds/NK-2 (30 cps).

specification

formatPaint/liquid supply methodNozzle diameter [mm]Blow air pressure Atomizing air [MPa]Paint/liquid spray amount [mL/min](1) Pattern opening/spraying distance [mm]Air usage [L/min]spray gun typenozzle shapeMass [g]Recommended paint/liquid viscosity [sec/NK-2]Blow air pressure Pattern air [MPa]Atomization statespray patternWetted parts materialBody materialRequired compressor [kW]Connection port size Atomizing airConnection size pattern airConnection port size Operating airPort size Paint/liquidPurposeNoise value [dB]Operating ambient temperature [℃]Working fluid temperature [℃]Maximum operating air pressure [MPa]accessoriesremarks
AS-80-001 Pressure feeding type (gravity type) 0.4 0.29 -- 10/50 15 General purpose straight nozzle 175 12 0.29 General-purpose fine particles For round blowing only brass, stainless steel Brass -- Rc1/8 female ⁻ Rc1/8 female Rc1/8 female marking 55.2 5~40 5~43 0.29 General purpose labels for cardboard boxes, polyethylene bags, plain boxes --
