Features
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 25 seconds/NK-2 (80cps).

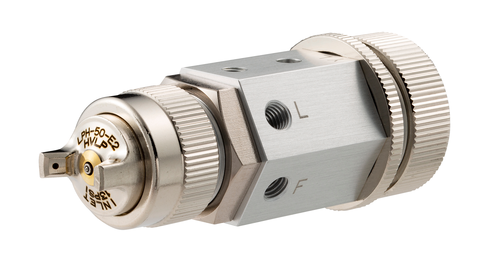

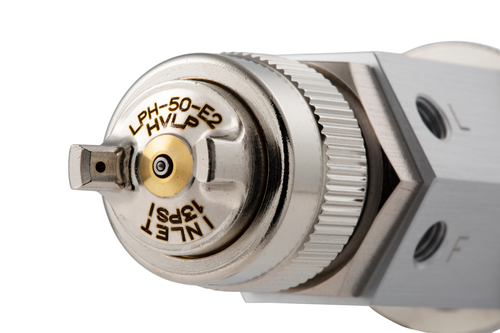

AS-80-011: Body material aluminum
AS-80-013: Body material stainless steel
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection size pattern air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-80-011 | Pressure feeding type | 1.0 | 0.09 | 55 | 100 | 50 | General purpose | straight nozzle | 120 | -- | 0.09 | General-purpose fine particles | For round blowing only | aluminum, stainless steel | Aluminum | -- | M5×0.8 | M5×0.8 | M5×0.8 | M5×0.8 | Facet application | 57.0 | 5~40 | 5～43 | 0.68 | -- | -- |
| AS-80-013 | Pressure feeding type | 1.0 | 0.09 | 55 | 100 | 50 | General purpose | straight nozzle | 180 | -- | 0.09 | General-purpose fine particles | For round blowing only | stainless | stainless | -- | M5×0.8 | M5×0.8 | M5×0.8 | M5×0.8 | Facet application | 57.0 | 5~40 | 5～43 | 0.68 | -- | -- |
